Motherboard Msi Mag B550 Tomahawk Am4 | Componentes | Motherboards | Para amd | Integratec Online Store
Motherboard Msi Mag B550 Tomahawk Am4 Motherboard Msi Mag B550 Tomahawk Am4 Motherboard Msi Mag B550 Tomahawk Am4 Motherboard Msi Mag B550 Tomahawk Am4
Continuar Comprando
Compartir

  • Facebook

  • Google

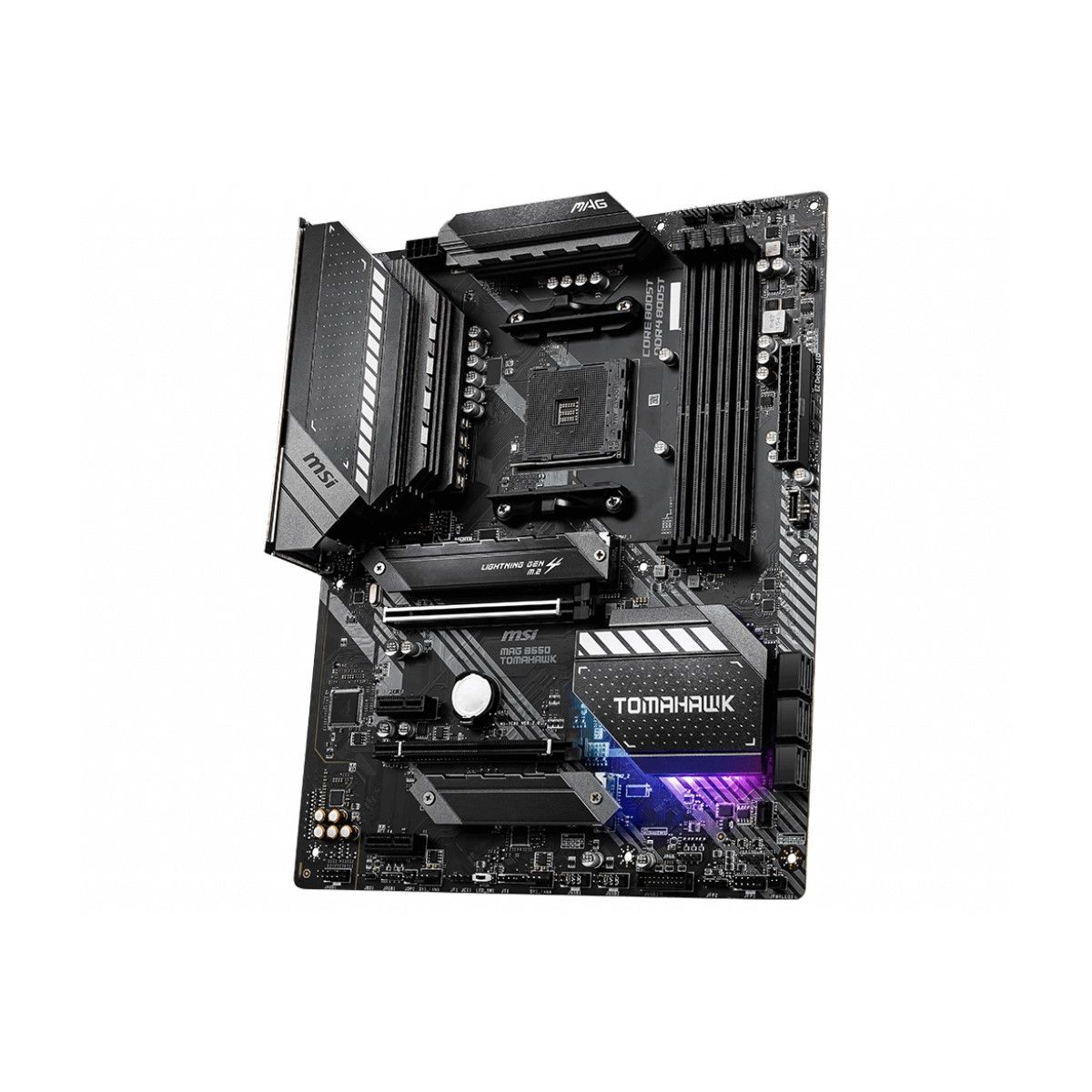

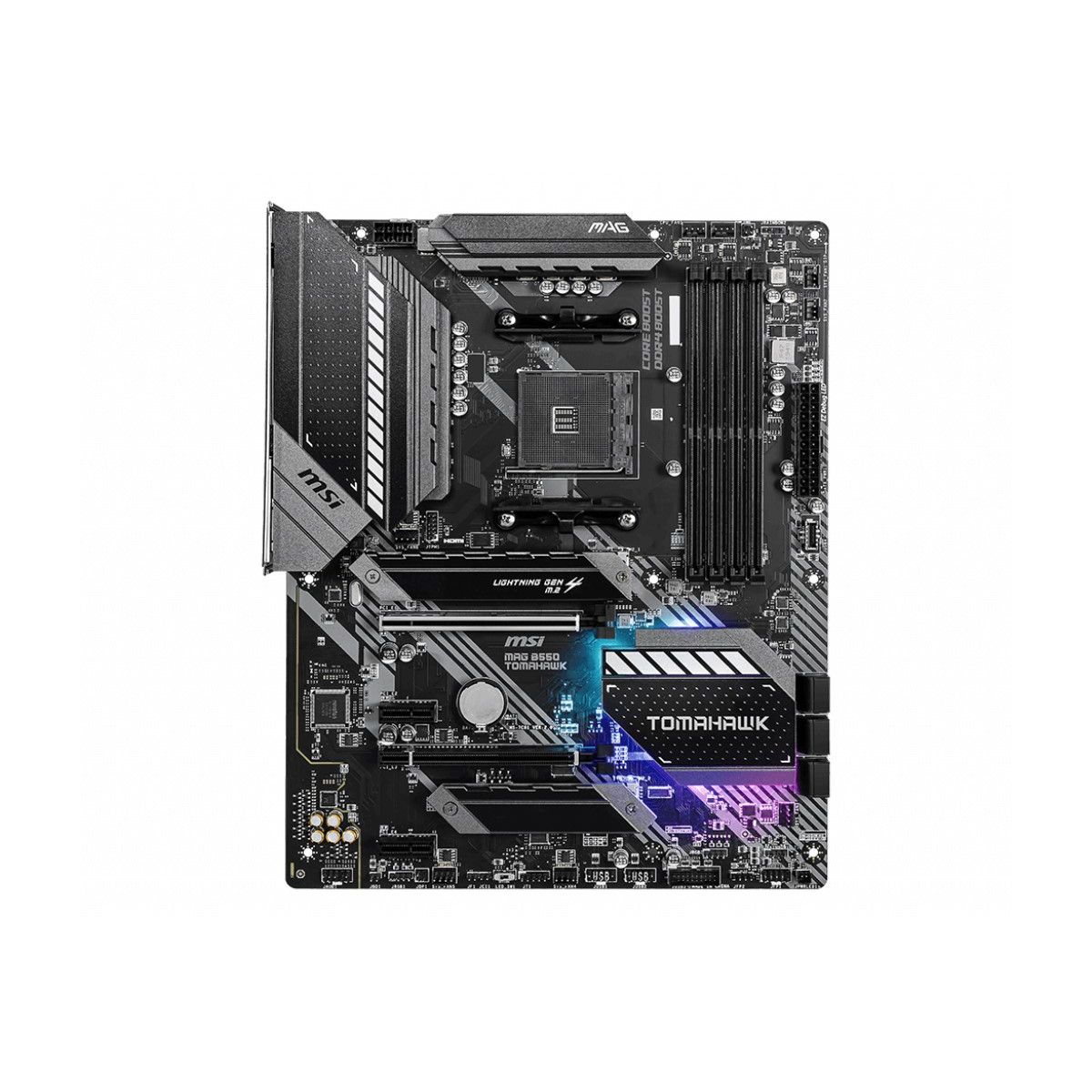

Motherboard Msi Mag B550 Tomahawk Am4 MMB550TH

339,00 USD

-

Sin stock |10 vendidos |Visto por 77 personas

Sin stock
10 vendidos
Visto por 77 personas

Marca: Msi
CPU: Supports AM4 socket AMD Ryzen
Chipset: AMD B550 Chipset
Memoria: 4 x DDR4 memory slots, support up to 128GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
1DPC 1R max speed 4866 MHZ
1DPC 2R max speed 3866 MHZ
2DPC 1R max speed 4000 MHZ
2DPC 2R max speed 3600 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Gráficos: 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
Maximum shared memory of 2048 MB
Audio: Realtek® ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN: 1x Realtek® RTL8125B 2.5Gbps LAN controller
1x Realtek® RTL8111H 1Gbps LAN controller
Ranuras de Expansión: 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
2x PCIe 3.0 x1 slots

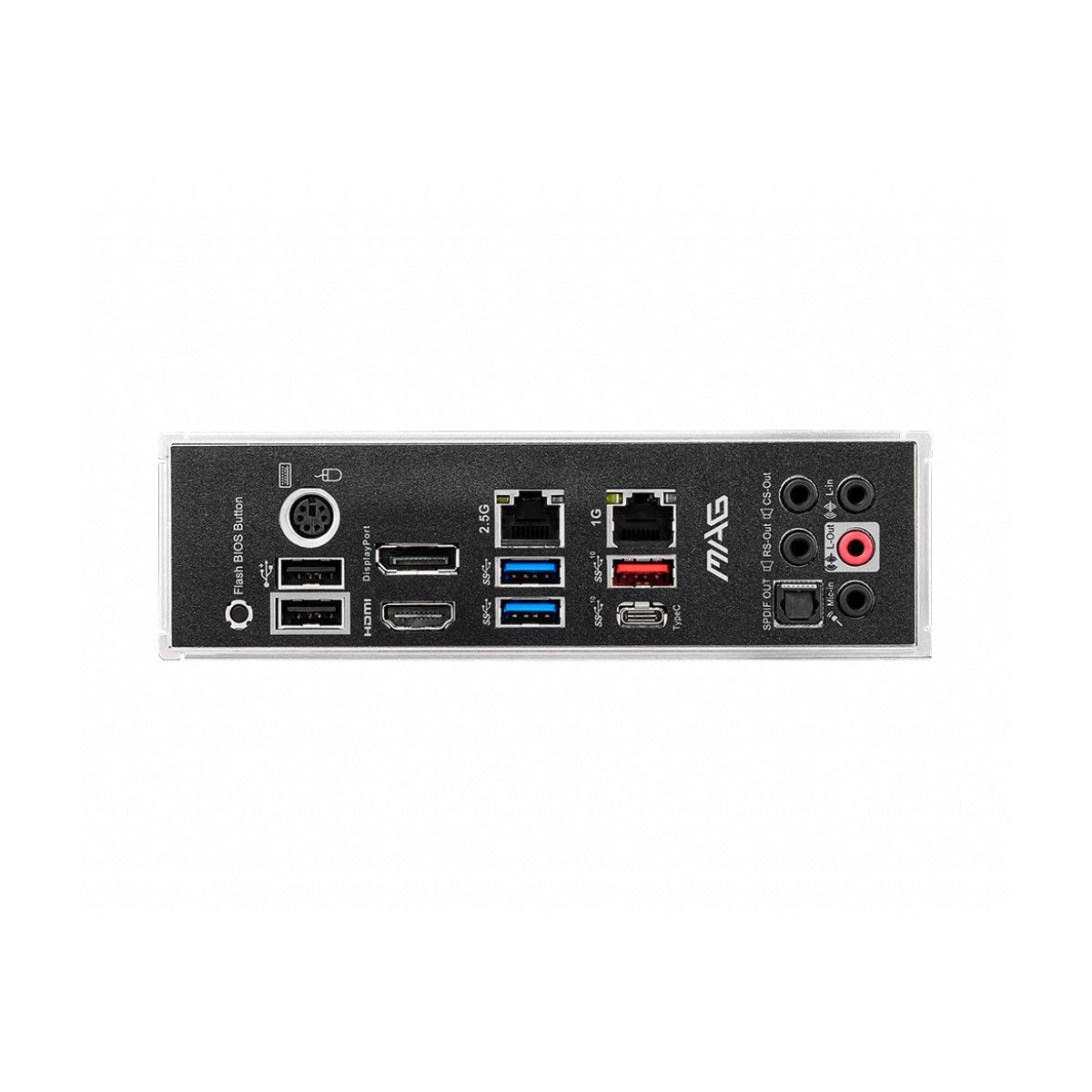

Panel trasero E/S: PS/2 Combo Port
DisplayPort
2.5G LAN Port
1G LAN Port
HD Audio Connectors
Flash BIOS Button
USB 2.0 Port
HDMI Port
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A + Type-C)
Optical S/PDIF OUT
Formato: ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Socket: AM4
Almacenamiento: 6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB: 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Motherboard Msi Mag B550 Tomahawk Am4
