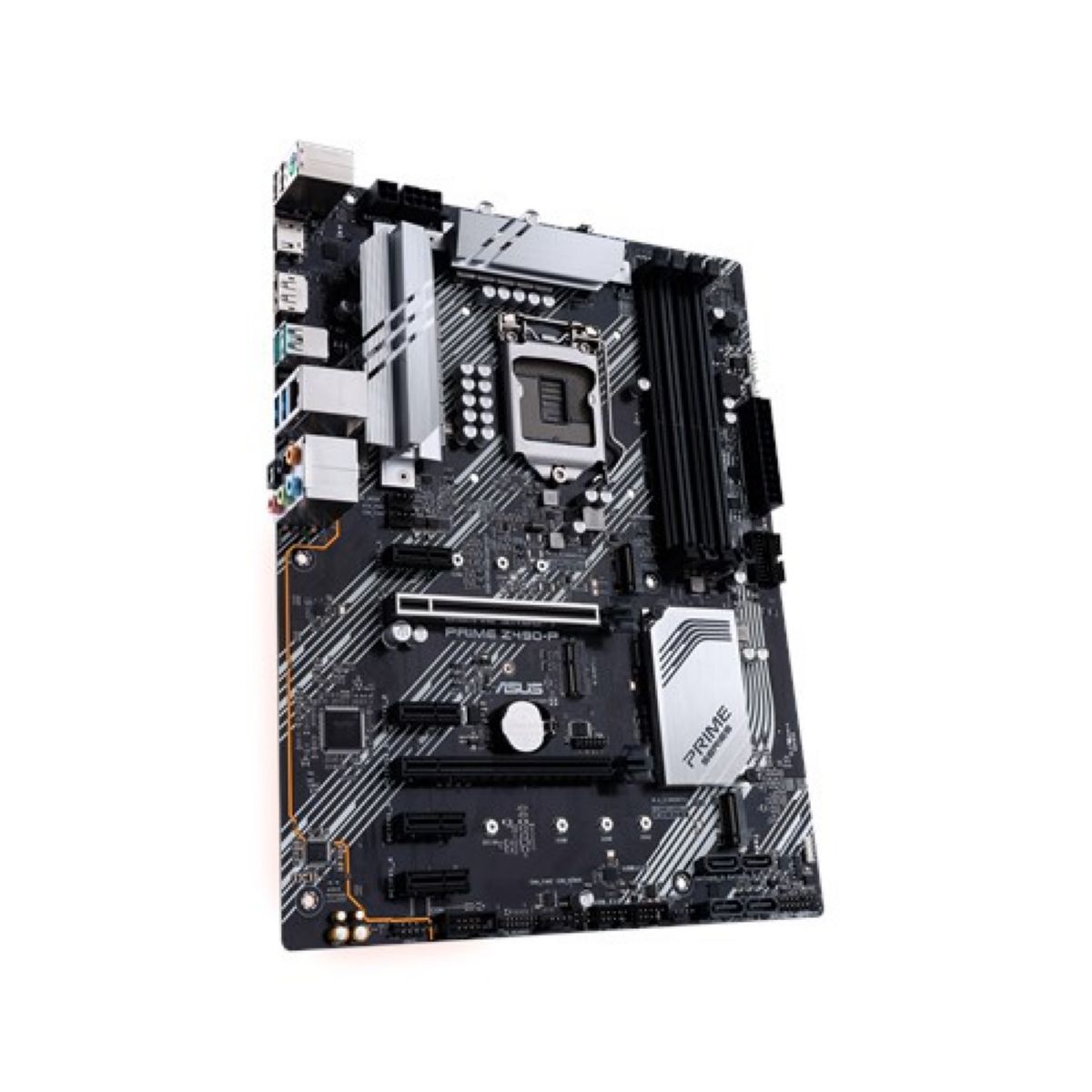

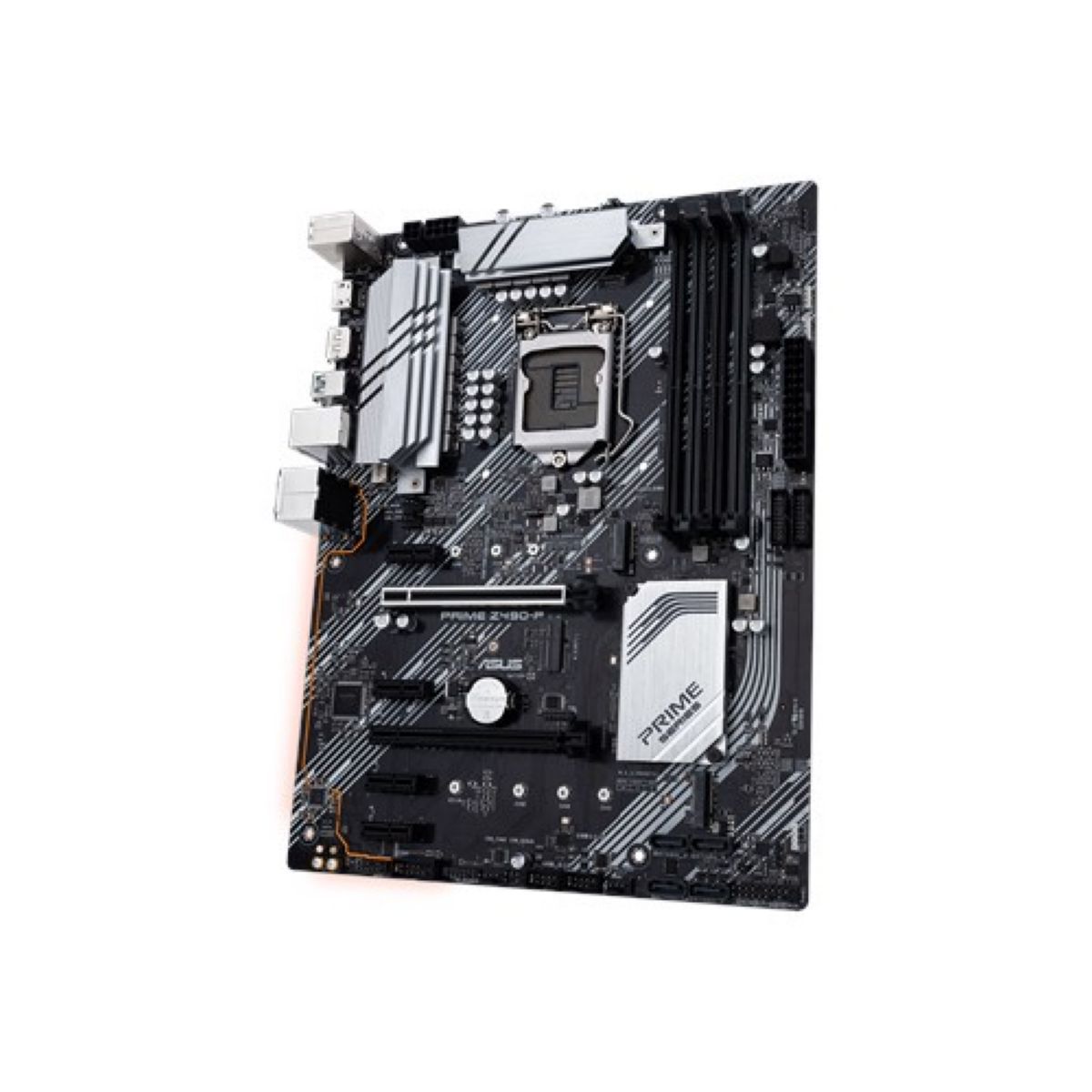

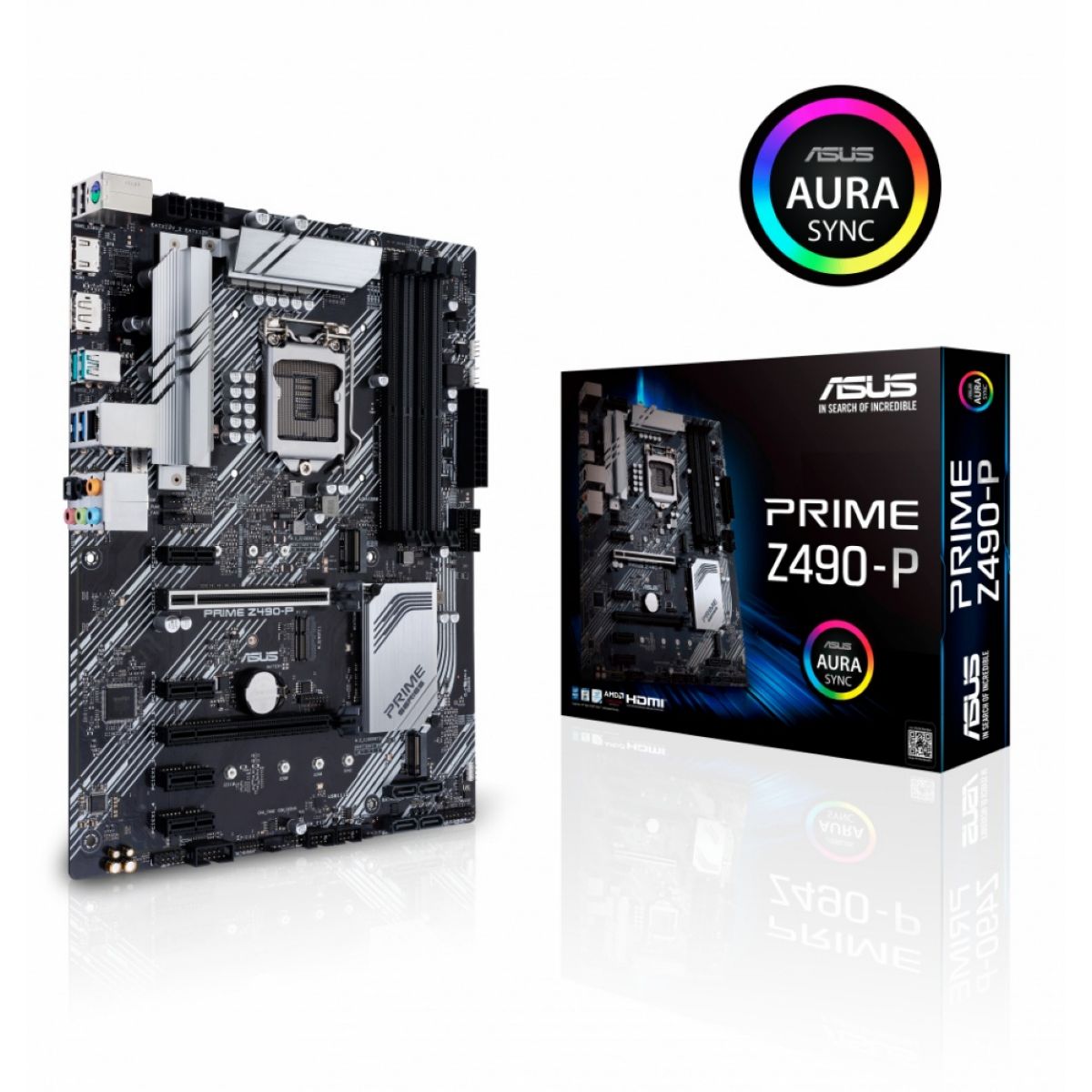

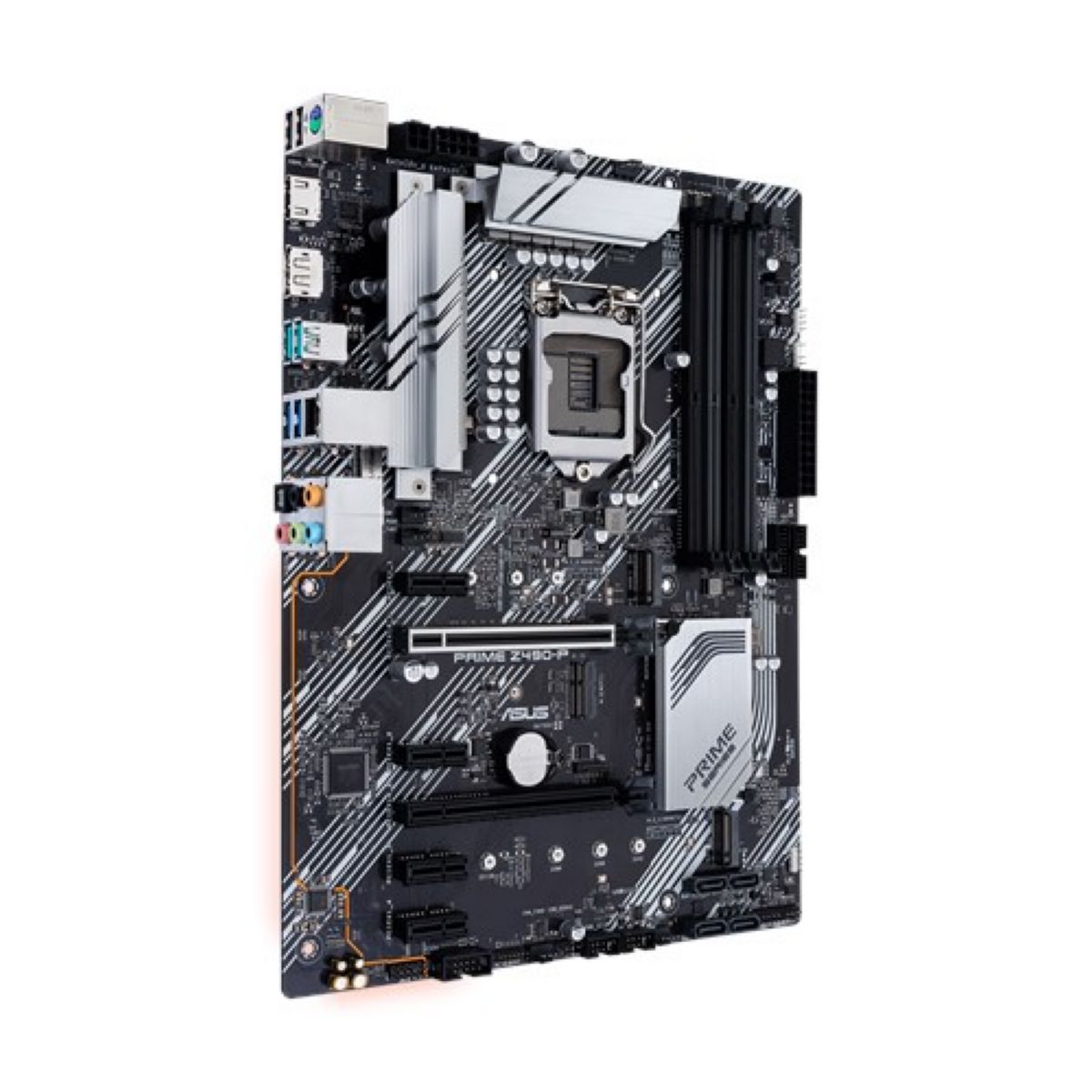

Placa madre Intel® Z490 (LGA 1200) ATX con doble M.2, 11 etapas de potencia DrMOS, Ethernet de 1 Gb, HDMI, DisplayPort, SATA 6Gbps, USB 3.2 Gen 2, soporte Thunderbolt ™ 3 e iluminación Aura Sync RGB. La serie ASUS Prime está diseñada por expertos para liberar todo el potencial de los procesadores Intel® Core ™ de 10a generación. Con un diseño robusto de potencia, soluciones integrales de enfriamiento y opciones de ajuste inteligentes, las placas base de la serie Prime Z490 brindan a los usuarios diarios y a los fabricantes de PC de bricolaje una gama de opciones de ajuste de rendimiento a través de características intuitivas de software y firmware.
Marca: Asus
Part Number: 90MB12V0-M0AAY0
CPU: Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset z490
Memoria 4 x DIMM, Max. 128GB, DDR4
4600(O.C) 4500(O.C) 4400(O.C) 4266(O.C.) 4133(O.C.) 4000(O.C.) 3866(O.C.) 3733(O.C.) 3600(O.C.) 3466(O.C.) 3400(O.C.) 3333(O.C.) 3300(O.C.) 3200(O.C.) 3000(O.C.) 2933(O.C.) 2800(O.C.) 2666 2400 2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively,
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Gráficos Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
LAN Realtek® RTL8111H
Ranuras de Expansión Intel 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode) *1
Intel® Z490 Chipset
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe 3.0 x1
Conectores 1 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x AIO_PUMP connector
1 x Thunderbolt header(s)
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

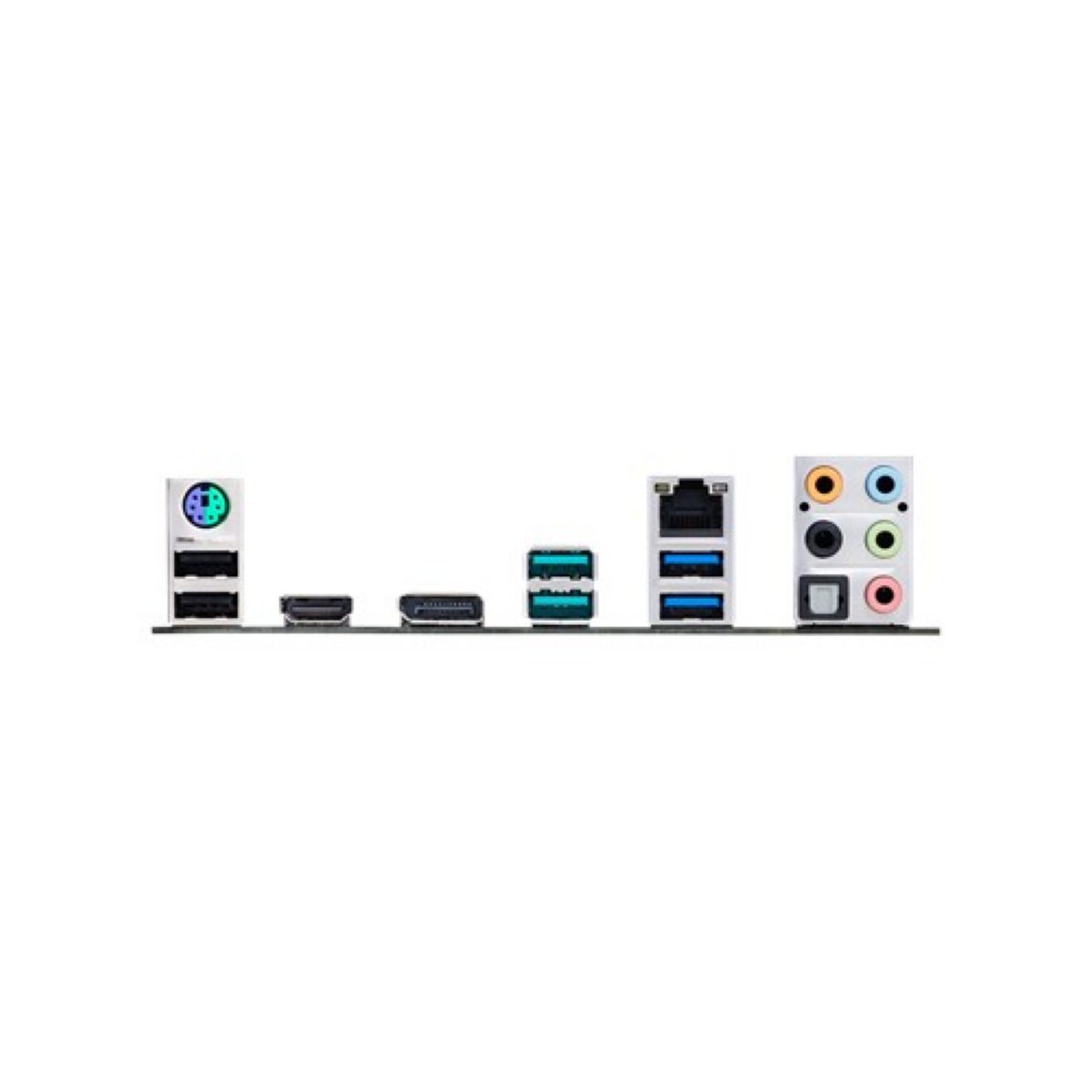

Panel trasero E/S 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Caract. Especiales ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Procool
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header

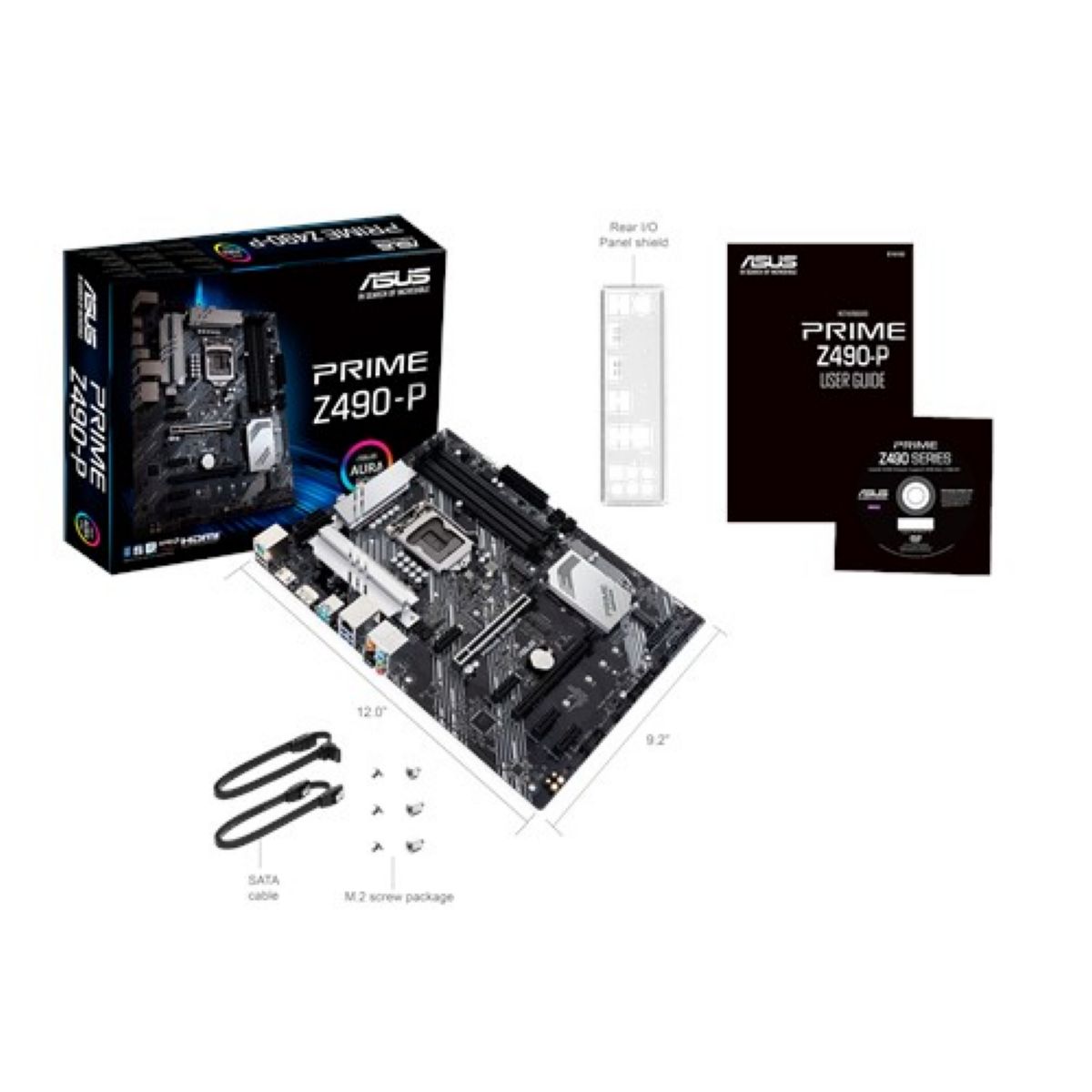

Accesorios User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)
1 xM.2 Key E screw package(s)
Formato Atx
Socket 1200
RAID Raid
USB Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 8 )
4 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
