Motherboard Asus X570-p Prime Am4 Mv | Componentes | Motherboards | Para amd | Integratec Online Store
Motherboard Asus X570-p Prime Am4 Mv Motherboard Asus X570-p Prime Am4 Mv Motherboard Asus X570-p Prime Am4 Mv Motherboard Asus X570-p Prime Am4 Mv
Compartir

Motherboard Asus X570-p Prime Am4 Mv MAX570PPMV

333,00 USD

PAGALO EN 12 CUOTAS DE $U 1.078

Sin stock |20 vendidos |Visto por 11 personas

Sin stock
20 vendidos
Visto por 11 personas


Marca: Asus
CPU: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
* Refer to www.asus.com for CPU support list
* Due to CPU limitation, CPU cores supported varies by processors.
Chipset: AMD X570
Memoria: 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory capacity supported vary depending on the CPU you installed.
Gráficos: Integrated Graphics in AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors
VGA output support : HDMI port
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
Audio: Realtek S1200A 8-Channel High Definition Audio CODEC *
- Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- Front panel audio connector (AAFP)
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese-made audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
LAN: Realtek® RTL8111H
ASUS LAN Guard
Ranuras de Expansión: AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 (x16 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD RyzenTM 3000 G-Series / 2000 G-Series Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
3 x PCIe 4.0 x1

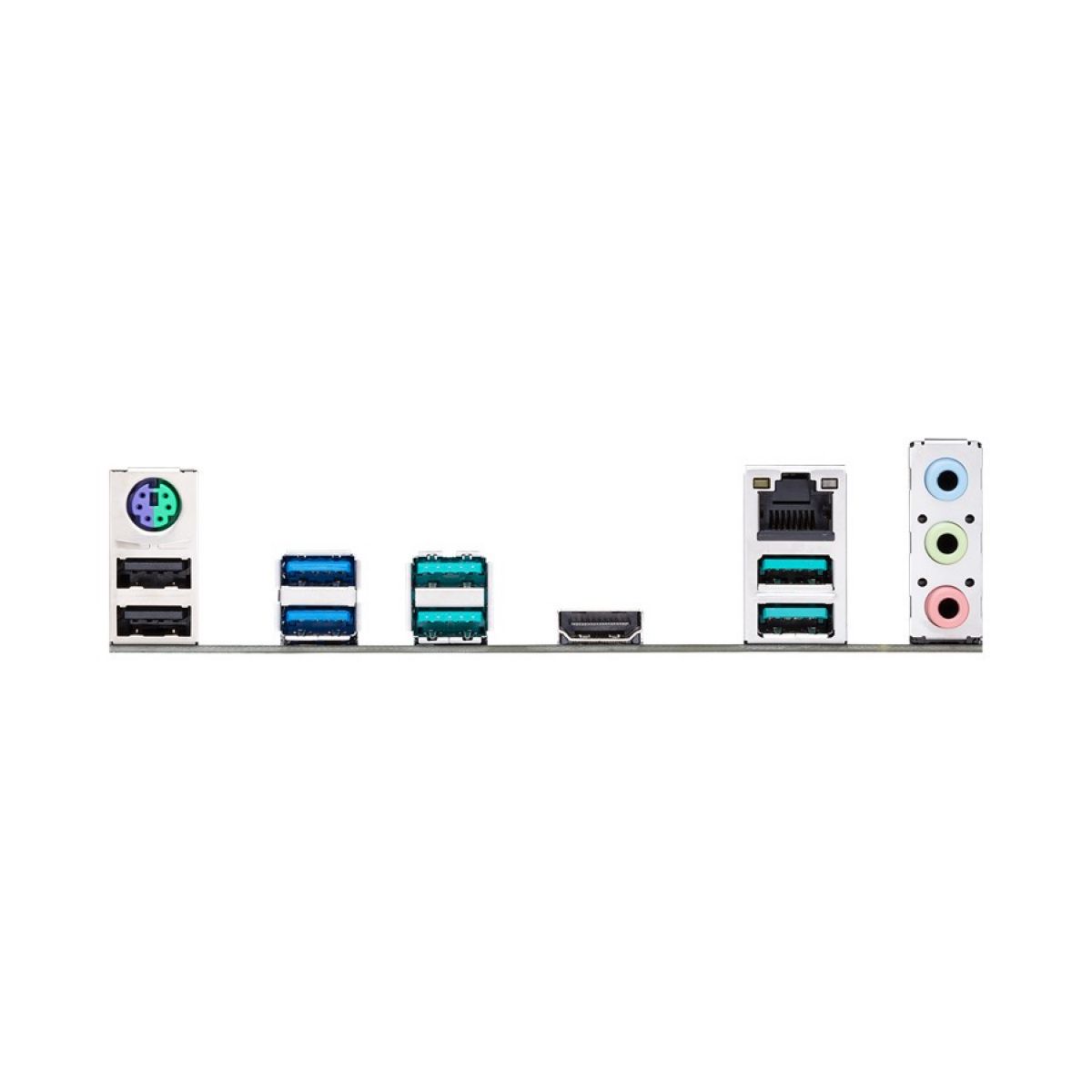

Panel trasero E/S: 1 x PS/2 keyboard/mouse combo port(s)
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 2.0
3 x Audio jack(s)
2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
Formato: ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Socket: AM4
Almacenamiento: AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
AMD Ryzen™ 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
RAID: Support Raid 0, 1, 10
USB: AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :
2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *)
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :
2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A)
AMD X570 chipset :
2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A)
AMD X570 chipset :
4 x USB 3.2 Gen 1 port(s) (4 at mid-board)
AMD X570 chipset :
5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board)
* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors.
Motherboard Asus X570-p Prime Am4 Mv
