Motherboard Asus Tuf Gaming Z490-plus (wi-fi) | Componentes | Motherboards | Para intel | Integratec Online Store

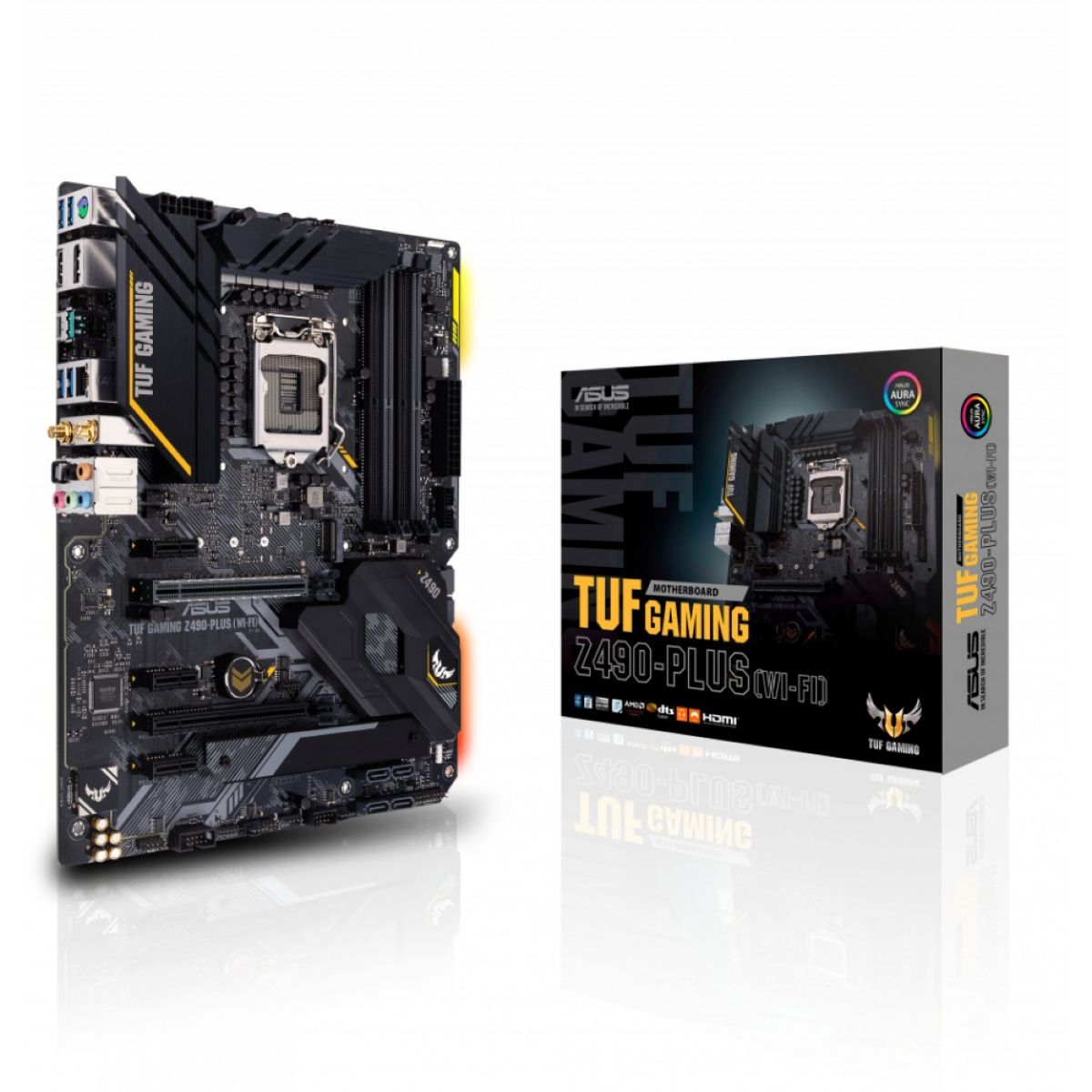

Motherboard Asus Tuf Gaming Z490-plus (wi-fi)
Continuar Comprando
Compartir

  • Facebook

  • Google

Motherboard Asus Tuf Gaming Z490-plus (wi-fi) MAZ490PTG

349,00 USD

PAGALO EN 12 CUOTAS DE $U 1.175

Sin stock |42 vendidos |Visto por 116 personas

Sin stock
42 vendidos
Visto por 116 personas


Marca: Asus
Part Number: 90MB1330-M0AAY0
CPU: Intel® Socket LGA1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset: Z490
Memoria: 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to ASUS for the Memory QVL (Qualified Vendors Lists).
* Refer to ASUS for the Memory QVL (Qualified Vendors Lists).
BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Gráficos: Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to INTEL for any update.
Audio: Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
LAN: Intel® I219-V 1Gb Ethernet
TUF LANGuard
Ranuras de Expansión: Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® Z490 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe x1
Conectores: 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)
2 x M.2 Socket 3
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Panel trasero E/S: 1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1 (blue) Type-A
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi Module
Accesorios: User's manual
1 x ASUS Fan Holder
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
1 x Wi-Fi moving antenna
Formato: Atx
Socket: LGA 1200
Almacenamiento: Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
RAID: Sin Informacion
USB: Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(1 + Type-A +1 + USB Type-C®)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)
1 x USB 3.2 Gen 1 port(s)(2 x Type-A)
1 x USB 2.0 port(s)(2 x Type-A)
1 x USB 2.0 port(s)(1 x Type-A)
