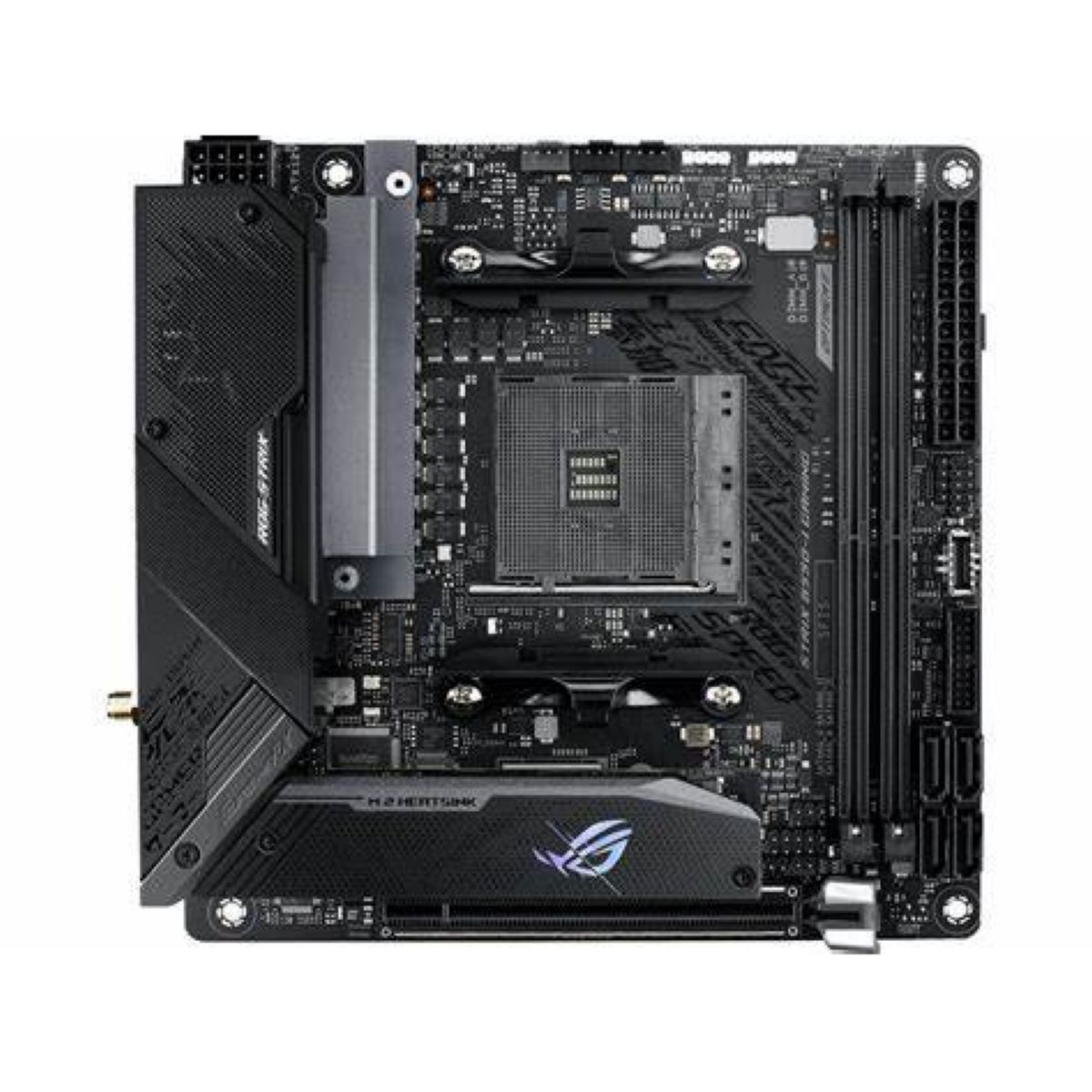

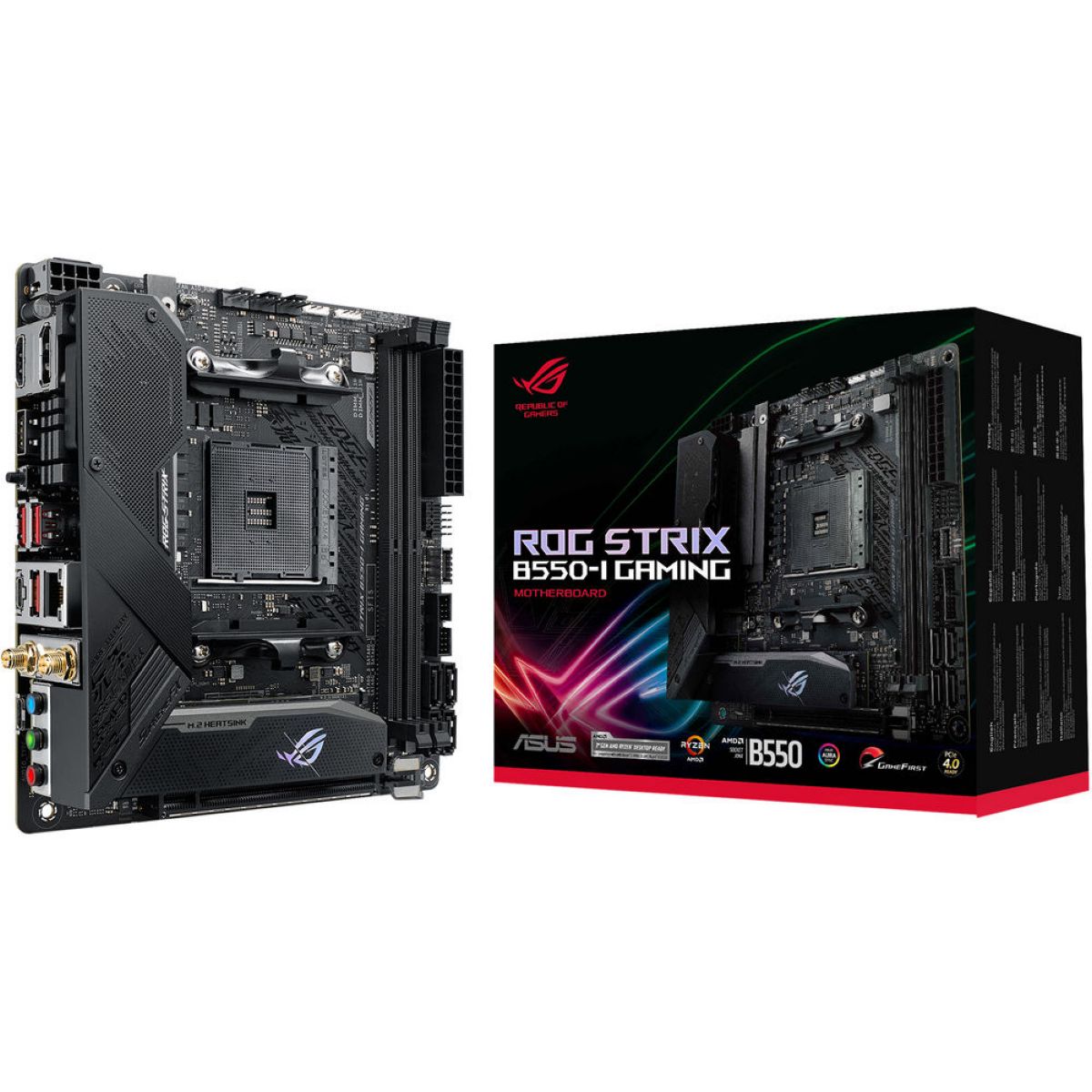

Motherboard Asus Rog Strix B550-i Gaming Am4 | Componentes | Motherboards | Para amd | Integratec Online Store
Motherboard Asus Rog Strix B550-i Gaming Am4 Motherboard Asus Rog Strix B550-i Gaming Am4
Continuar Comprando
Compartir

  • Facebook

  • Google

Motherboard Asus Rog Strix B550-i Gaming Am4 MARSB550IG

340,00 USD

PAGALO EN 12 CUOTAS DE $U 1.180

Sin stock |70 vendidos |Visto por 104 personas

Sin stock
70 vendidos
Visto por 104 personas


Las placas base de la serie ROG Strix B550 Gaming ofrecen un conjunto de funciones que normalmente se encuentra en la serie rog Strix X570 Gaming de gama alta, incluyendo el último PCIe® 4.0. Con una entrega de potencia robusta y una refrigeración eficaz, ROG Strix B550 Gaming está bien equipado para manejar CPU AMD Ryzen™ de 3ª generación. Con una estética futurista y un software ROG intuitivo, ROG Strix B550-I Gaming está listo para convertirse en tu próxima construcción de juegos compactos
Marca: Asus
Part Number: 192876786383
CPU: am4
Chipset: B550
Memoria: 2 x DIMM, Max. 64GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Gráficos: 1 x HDMI 2.1(4K@60HZ)
1 x DisplayPort 1.4
Audio: SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A
- Rear audio USB Type-C® port
- LED-illuminated design
- Audio Shielding
- Premium Japanese audio capacitors
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- Supports up to 32-Bit/192kHz playback
LAN: Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
Ranuras de Expansión: AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x16 mode)
Conectores: 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x VRM_HS_FAN Header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
Panel trasero E/S: 4 x USB 3.2 Gen 2 (1 x USB Type-C®+3 x Type-A)
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™1 for audio USB Type-C®)
1 x BIOS FlashBack™ Button(s)
1 x Intel® I225-V 2.5Gb Ethernet
3 x LED-illuminated audio jacks
1 x DisplayPort
1 x HDMI
1 x ASUS Wi-Fi Module
Caract. Especiales: Aura Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
ASUS Q-Design
- ASUS Q-CODE
- ASUS Q-DIMM
- ASUS Q-LED (DRAM
yellow
,CPU
red
, VGA
white
, Boot Device
yellow green)
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS Flashback™ button
-BIOS FlashBack™ LED
-Clear CMOS header
-Procool
-Pre-mounted I/O shield
- SafeSlot
Rear audio USB Type-C® connector
Accesorios: 1 x ROG audio USB Type-C® cable
1 x Panel cable
2 x M.2 Screw Package
User´s manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x M.2 bracket
1 x Cable ties pack(s)
1 x Wi-Fi Antenna(s)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
Formato: Mini-ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Socket: AMD AM4 Socket
Almacenamiento: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s)
RAID: Support Raid 0, 1, 10
USB: 4 x USB 3.2 Gen 2 port(s)(1 x USB Type-C® +3 x Type-A)
1 x USB 2.0 port(s)(1 x audio USB Type-C® )
Front USB Port ( Total 5 )
1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)
Rear USB Port ( Total 6 )
1 x USB 2.0 port(s)
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
Otros: Intel® Wi-Fi 6 AX200
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Imágenes meramente ilustrativas.
