Motherboard Asus Prime Z690-p Wifi S1700 | Componentes | Motherboards | Para intel | Integratec Online Store
Motherboard Asus Prime Z690-p Wifi S1700 Motherboard Asus Prime Z690-p Wifi S1700 Motherboard Asus Prime Z690-p Wifi S1700
Compartir

Motherboard Asus Prime Z690-p Wifi S1700 MAZ690PP

539,00 USD

-

Sin stock |10 vendidos |Visto por 57 personas

Sin stock
10 vendidos
Visto por 57 personas


Las placas base de la serie ASUS Prime están diseñadas por expertos para liberar todo el potencial de los procesadores Intel® de 12.ª generación. Con un diseño de energía robusto, soluciones de enfriamiento integrales y opciones de ajuste inteligentes, Prime Z690-A ofrece a los usuarios y constructores de PC una gama de opciones de ajuste de rendimiento a través de funciones de software y firmware intuitivas. ASUS Prime Z690-P ofrece una construcción elegante y de aspecto futurista con un acabado en blanco y negro, elementos de diseño inspirados en el transbordador espacial, placa de identificación metálica y cubierta de PCB.
Marca: Asus
CPU: Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset: Z690
Memoria: 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Gráficos: 1 x DisplayPort
1 x HDMI port
Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
LAN: 1 x Intel® 2.5Gb Ethernet
Ranuras de Expansión: Intel®12th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot(s)
Intel® Z690 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x4 slot
2 x PCIe 3.0 x1 slots
Conectores: 1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
1 x W_PUMP+ header(s)
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
3 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS button
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Power button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header

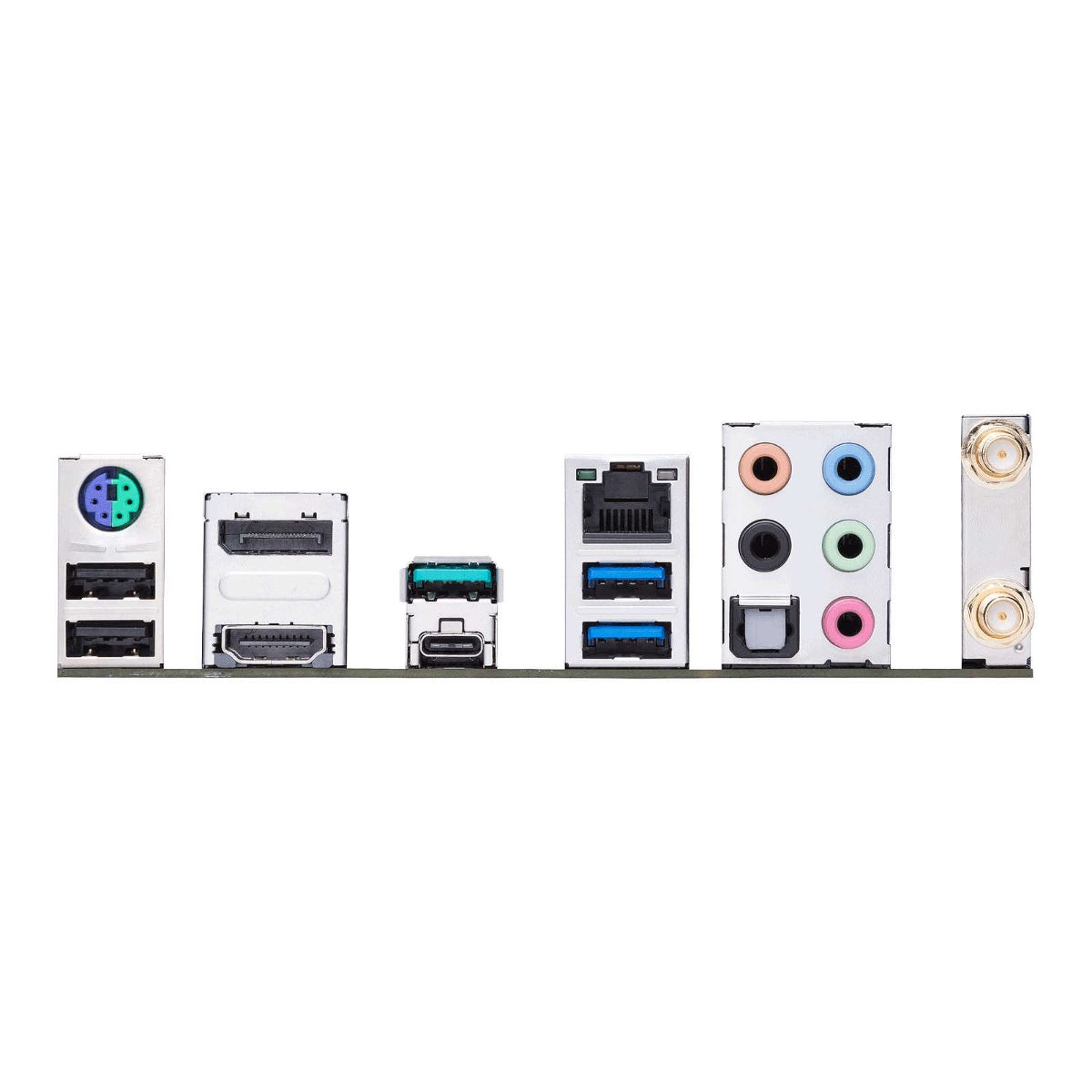

Panel trasero E/S: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
Caract. Especiales: ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU
red
, DRAM
yellow
, VGA
white
, Boot Device
yellow green
)
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Box headers
- Clear CMOS button
- CPU socket lever protector
- ProCool
- Pre-mounted I/O shield
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
Accesorios: Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 Rubber Package(s)
1 x Q-connector
1 x M.2 Q-Latch package(s)
Installation Media
1 x Support DVD
Documentation
1 x User guide
Formato: ATX
30.5cm x 24.4cm
Almacenamiento: Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel®12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel®12th Gen processors support PCIe 4.0 x4 mode.
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
RAID: Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
USB: 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® B365 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
