Motherboard Asus Prime H470m Plus Csm S1200 10ma G | Componentes | Motherboards | Para intel | Integratec Online Store
Motherboard Asus Prime H470m Plus Csm S1200 10ma G Motherboard Asus Prime H470m Plus Csm S1200 10ma G Motherboard Asus Prime H470m Plus Csm S1200 10ma G
Continuar Comprando
Compartir

  • Facebook

  • Google

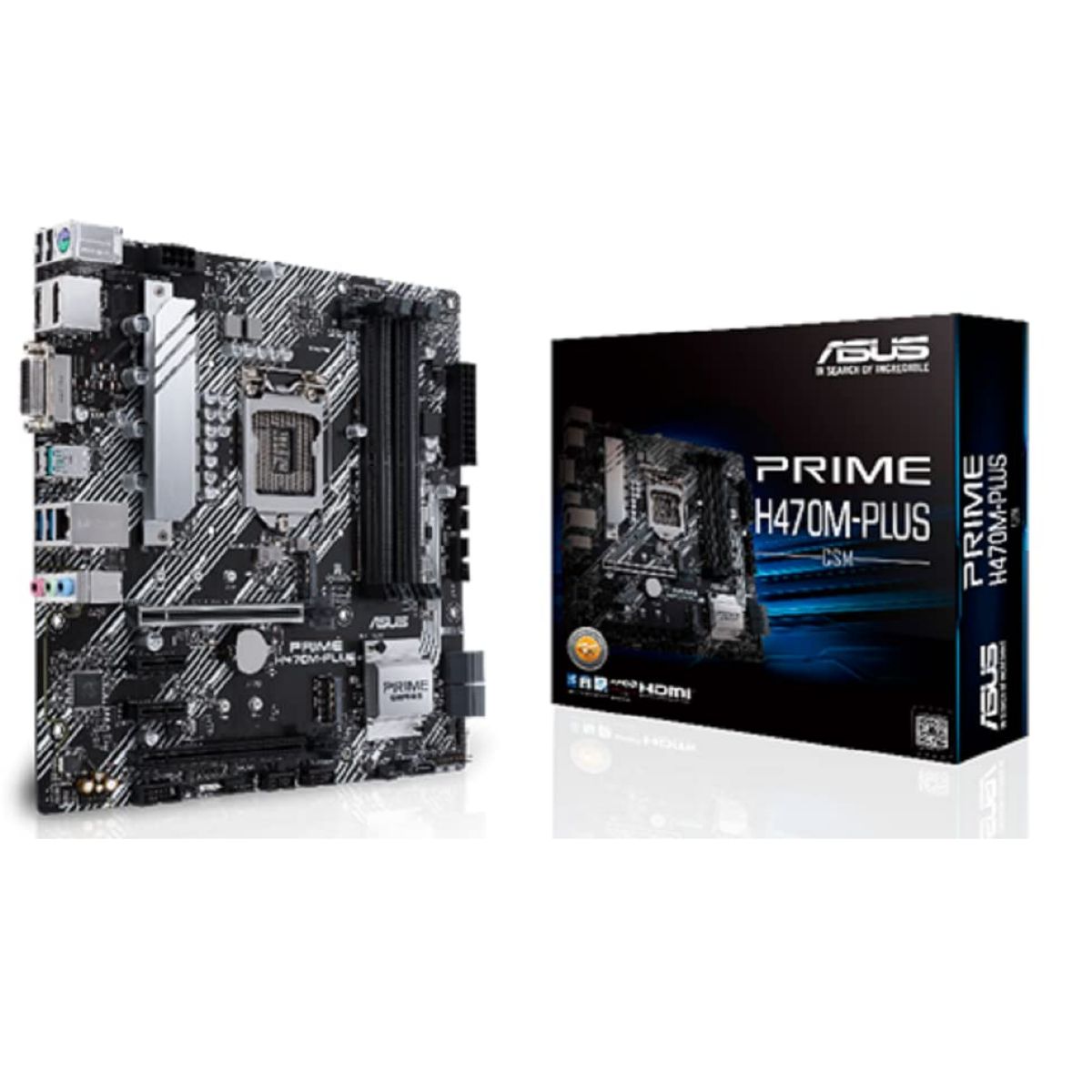

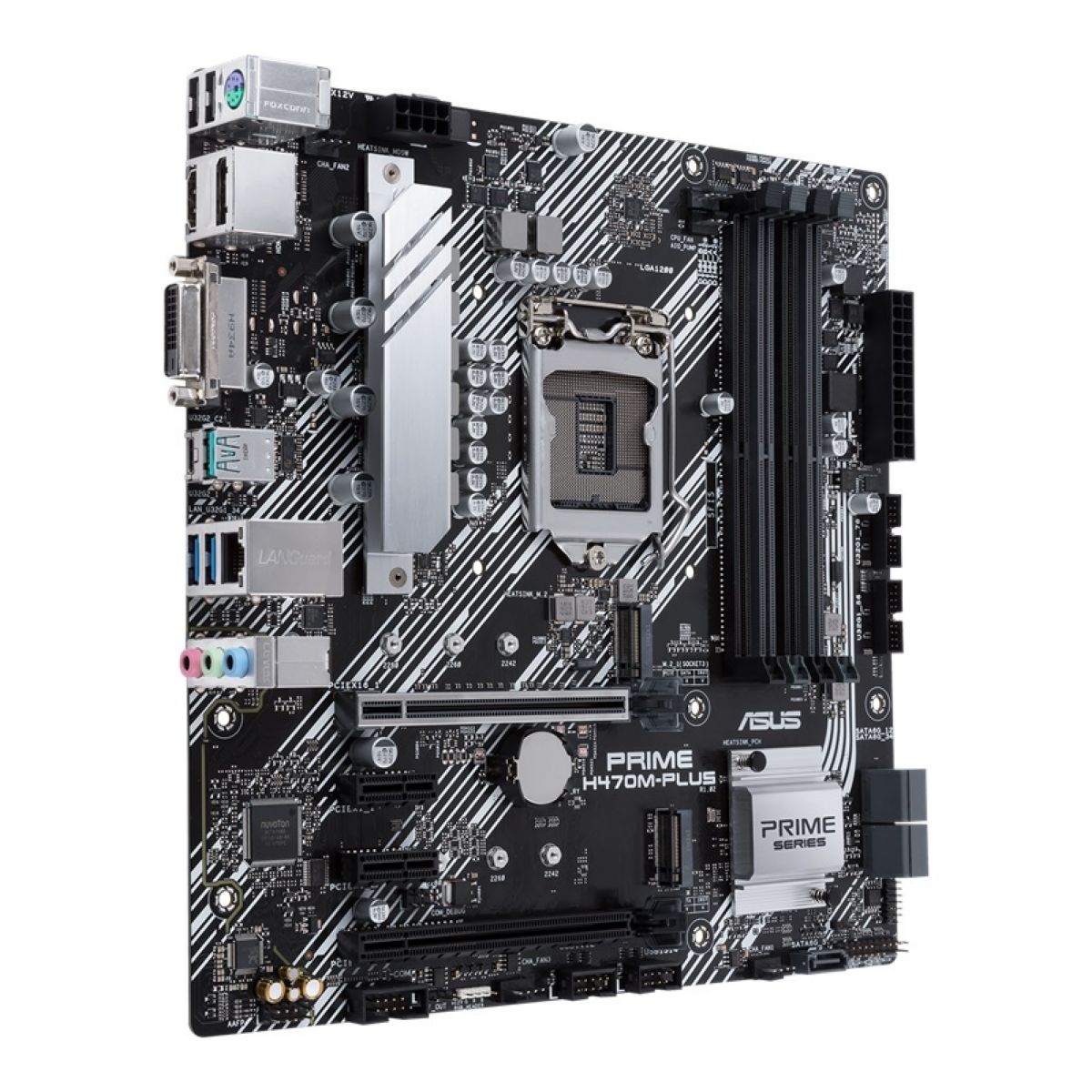

Motherboard Asus Prime H470m Plus Csm S1200 10ma G MAH470MPP

149,00 USD

PAGALO EN 6 CUOTAS DE $U 1.031

Sin stock |100+ vendidos |Visto por 66 personas

Sin stock
100+ vendidos
Visto por 66 personas


Marca: Asus
Part Number: MB-PH470MP
90MB1350-M0AAYC
CPU: Socket Intel LGA 1200: preparado para procesadores Intel Core de 10ª generación
Chipset: H470m
Memoria: 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to ASUS for the Memory QVL (Qualified Vendors Lists).
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Gráficos: 1 x DisplayPort 1.4 **
1 x HDMI 1.4b
1 x DVI-D
Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
LAN: Intel® I219-V 1Gb Ethernet
Ranuras de Expansión: Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® H470 Chipset
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe 3.0 x1
Conectores: 1 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
5 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

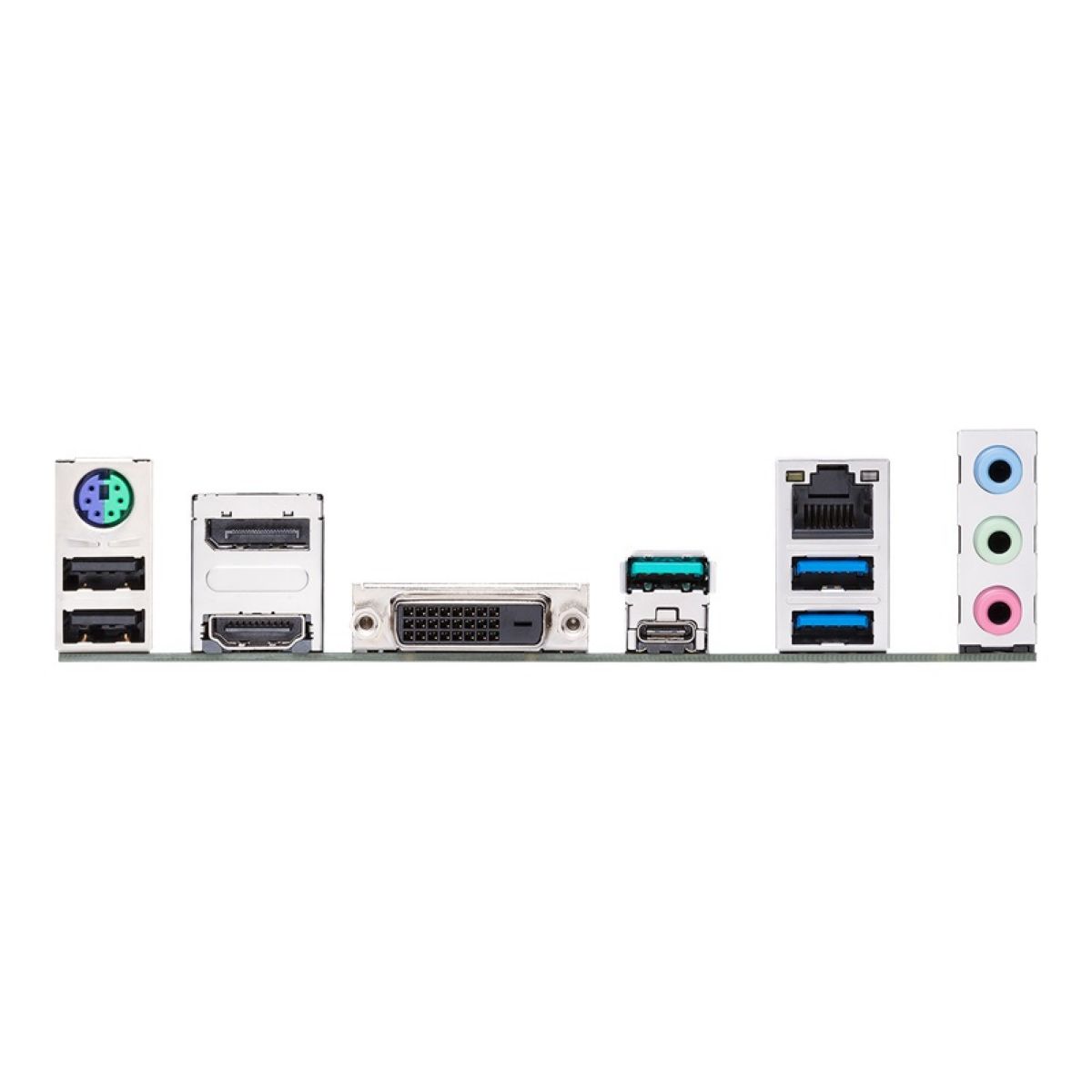

Panel trasero E/S: 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
Formato: mATX Form Factor
Almacenamiento: Total supports 2 x M.2 slots and 5 x SATA 6Gb/s ports
Intel® H470 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
5 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
RAID: No
USB: Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 8 )
4 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Motherboard Asus Prime H470m Plus Csm S1200 10ma G
