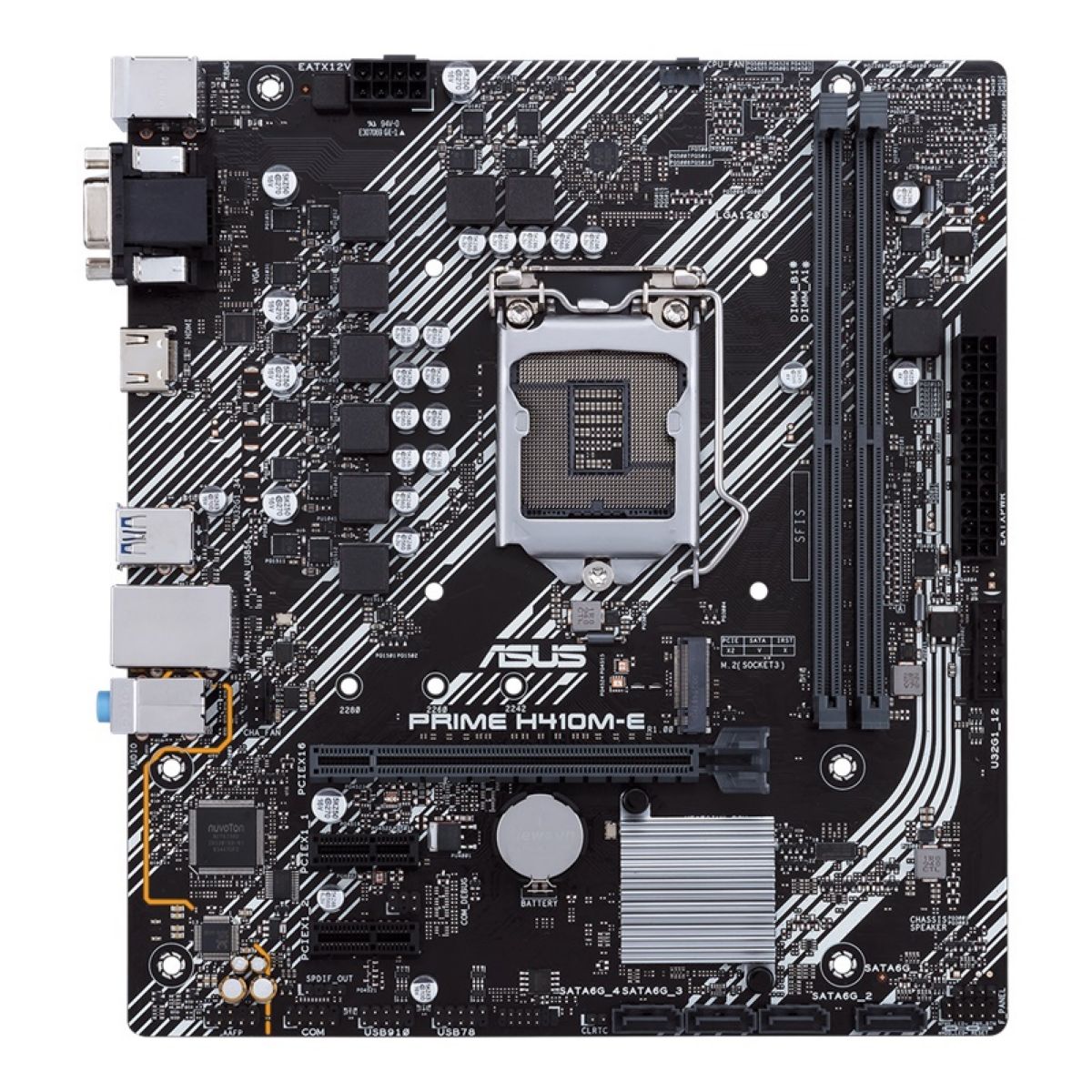

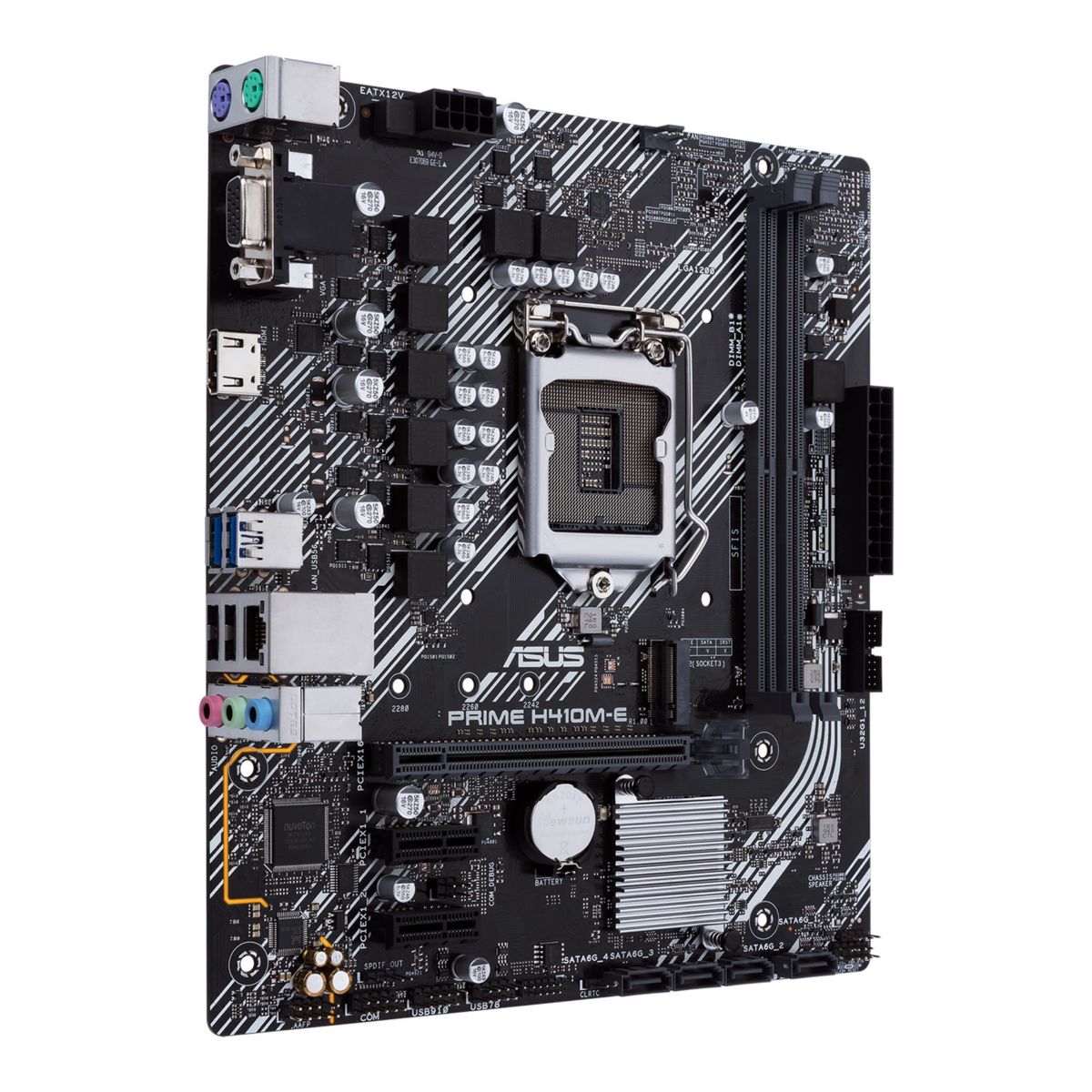

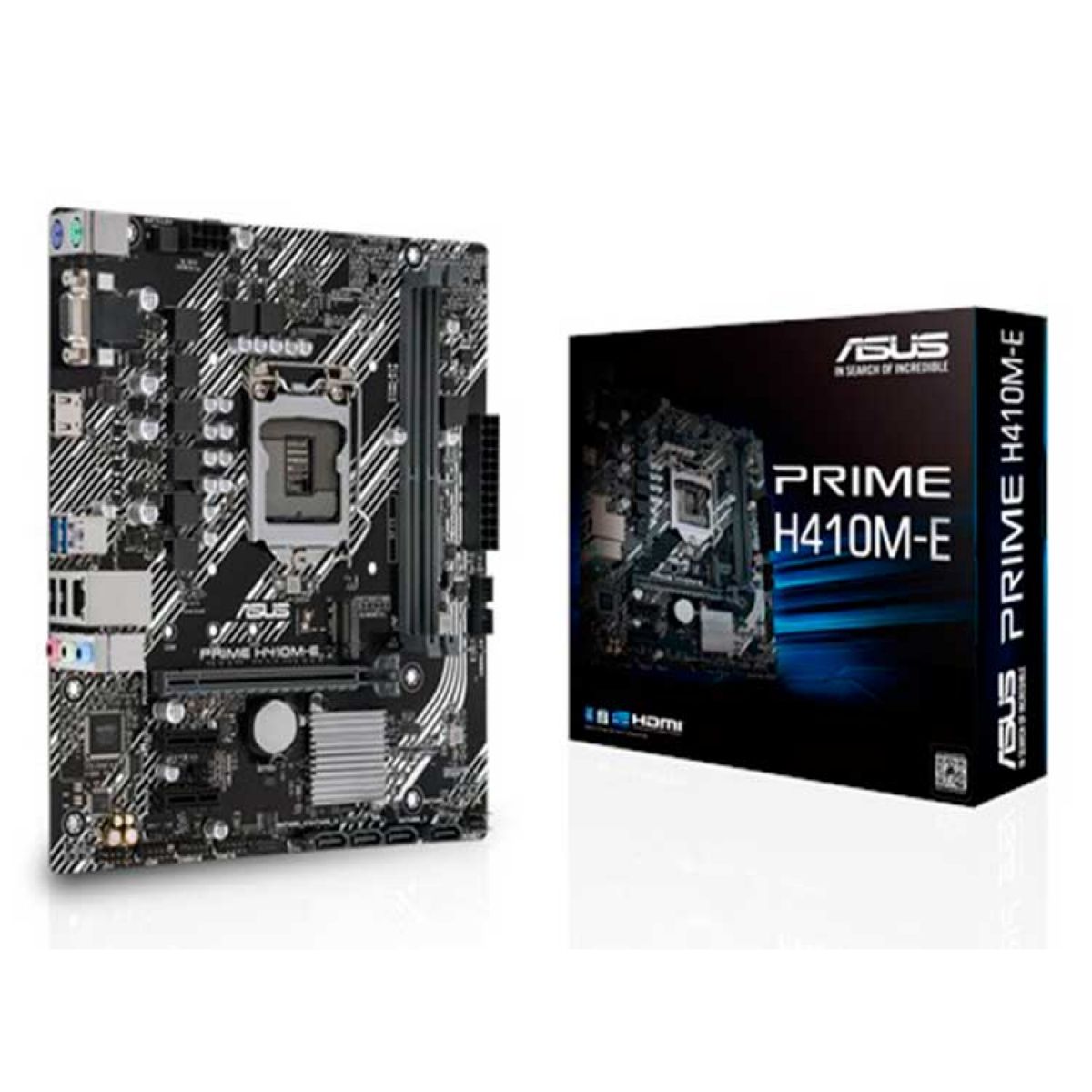

Motherboard Asus H410m-e Prime S1200 | Componentes | Motherboards | Para intel | Integratec Online Store
Motherboard Asus H410m-e Prime S1200 Motherboard Asus H410m-e Prime S1200 Motherboard Asus H410m-e Prime S1200
Continuar Comprando
Compartir

  • Facebook

  • Google

Motherboard Asus H410m-e Prime S1200 MAH410MEP

157,00 USD

PAGALO EN 6 CUOTAS DE $U 1.074

Sin stock |5 vendidos |Visto por 45 personas

Sin stock
5 vendidos
Visto por 45 personas

Tarjeta Madre Intel® H410 (LGA 1200) mic-ATX con soporte M.2, DDR4 2933MHz, HDMI, D-Sub, puertos USB 3.2 Gen 1, SATA 6 Gbps, puerto COM
Marca: Asus
CPU: Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to ASUS for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset: Intel® H410
Memoria: 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to ASUS for the Memory QVL (Qualified Vendors Lists).
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Gráficos: Integrated Graphics Processor *
1 x D-Sub
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
LAN: Realtek® RTL8111H
Ranuras de Expansión: Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® H410 Chipset
2 x PCIe 3.0 x1
Conectores: 1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
Panel trasero E/S: 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
Accesorios: I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Anchor
1 x Supporting DVD
User manual
Formato: mATX
Almacenamiento: Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H410 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1
4 x SATA 6Gb/s port(s)
RAID: no
USB: Rear USB Port ( Total 4 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
Motherboard Asus H410m-e Prime S1200
