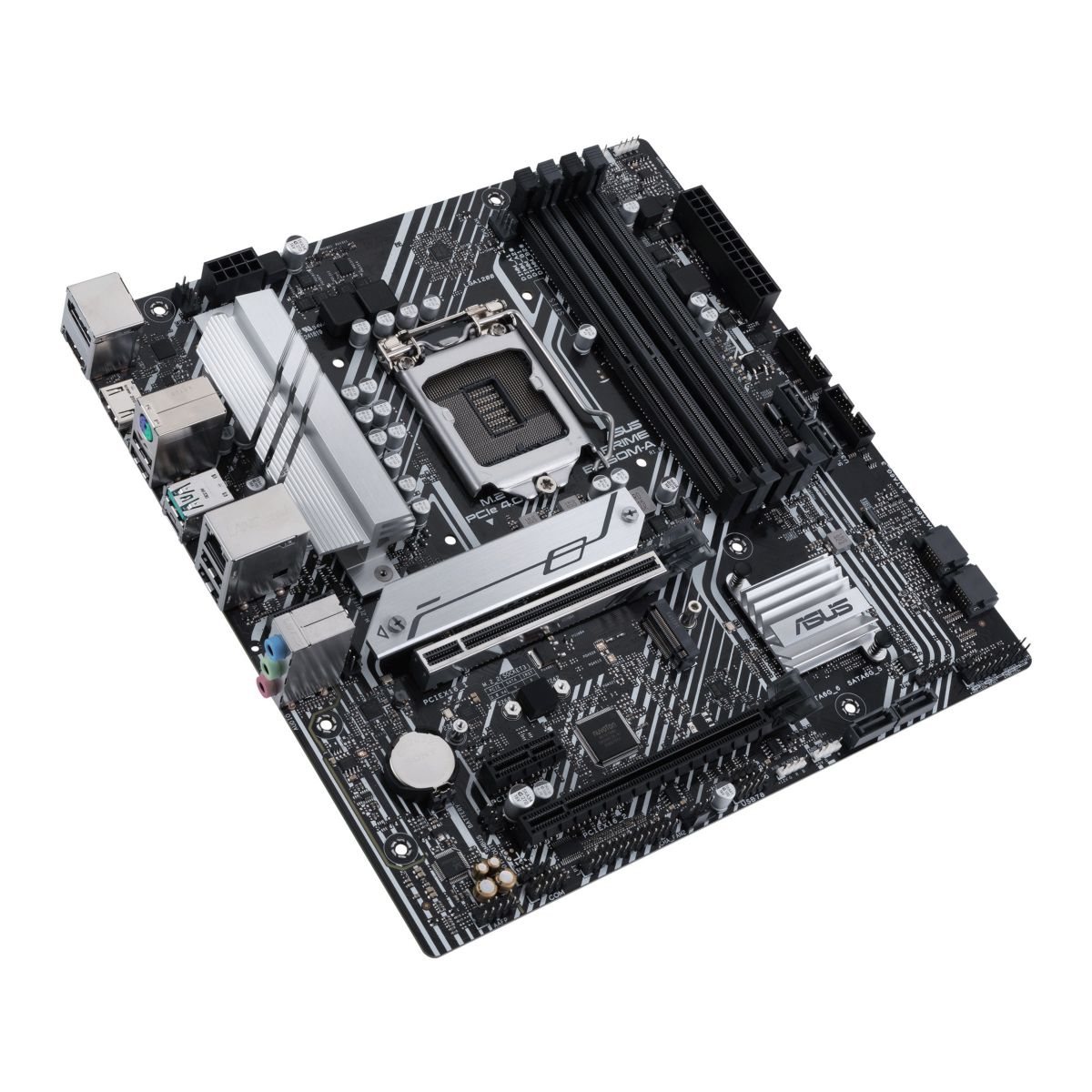

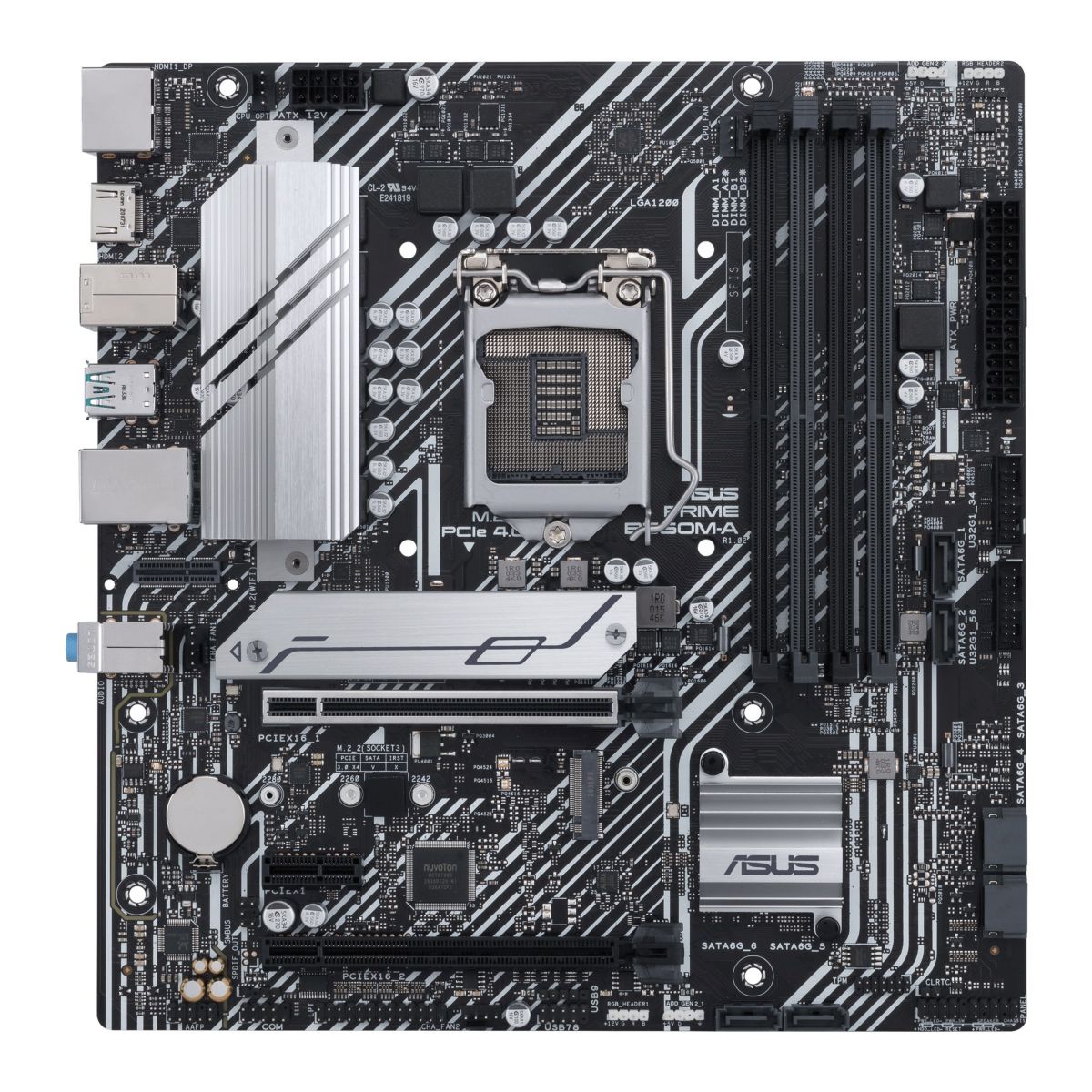

Tarjeta madre mATX Intel® B560 (LGA 1200), PCIe 4.0, dos puertos M.2, 8 fases de poder, Intel® 1Gb Ethernet, DisplayPort, HDMI dual, USB 3.2 posterior Gen 2 Type-C®, puerto VM.2 Key E para Wi -Fi, Aura Sync y RGB direccionable
Marca: Asus
CPU: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to asus for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset: B560m
Memoria: Memory Channels: 4DDR4 (Dual channel)
Max Memory Size: 128GB
DDR4
5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to asus for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Gráficos: 1 x DisplayPort 1.4**
2 x HDMI 2.0
* Graphics specifications may vary between CPU types.
** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to intel for any updates.
*** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to intel for any updates.
Audio: ALC887/897
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Ranuras de Expansión: Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot(s)*
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel®10th Gen processors support PCIe 3.0 x16
Intel® B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
1 x PCIe 3.0 x1 slots
* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
Conectores: Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
2 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 header(s)
2 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function

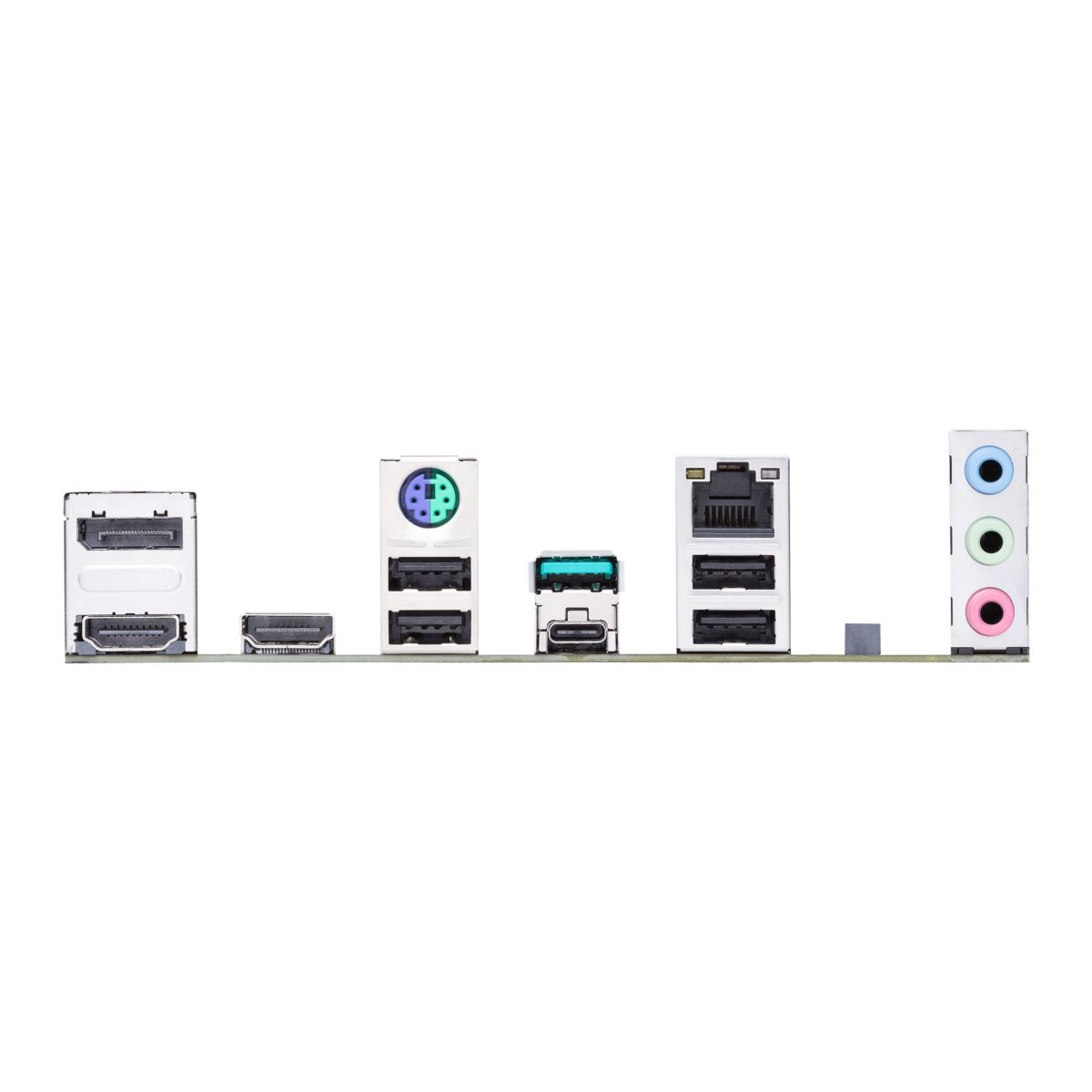

Panel trasero E/S: 2 x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
2 x HDMI™ port
1 x Intel® I219-V 1Gb Ethernet port
1 x V-M.2 slot (Key E)
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Formato: microATX
Almacenamiento: Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen ProcessorsV
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
6 x SATA 6Gb/s ports
* M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled
RAID: Sin informacion
USB: Rear USB:Total 6 ports
2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB:Total 7 ports
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports
