Motherboard Asus B550 Plus Tuf Gaming Am4 | Componentes | Motherboards | Para amd | Integratec Online Store
Motherboard Asus B550 Plus Tuf Gaming Am4 Motherboard Asus B550 Plus Tuf Gaming Am4 Motherboard Asus B550 Plus Tuf Gaming Am4
Compartir

Motherboard Asus B550 Plus Tuf Gaming Am4 MAB550PTG

339,00 USD

PAGALO EN 12 CUOTAS DE $U 1.160

Sin stock |100+ vendidos |Visto por 127 personas

Sin stock
100+ vendidos
Visto por 127 personas



TUF Gaming B550-Plus destila elementos esenciales de la última plataforma AMD y los combina con características preparadas para el juego y durabilidad comprobada. Diseñada con componentes de grado militar, una solución de potencia mejorada y un conjunto completo de opciones de refrigeración, esta placa base ofrece un rendimiento sólido con una estabilidad de juego inquebrantable.
Marca: Asus
Part Number: 192876749449
90MB14G0-M0AAY0
CPU: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset: AMD B550
Memoria: 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Gráficos: 1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)
Audio: Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Optical S/PDIF out port(s) at back panel
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Unique de-pop circuit
LAN: Realtek RTL8125B 2.5Gb Ethernet
TUF LANGuard
Ranuras de Expansión: 1 x PCIe 4.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
Conectores: 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

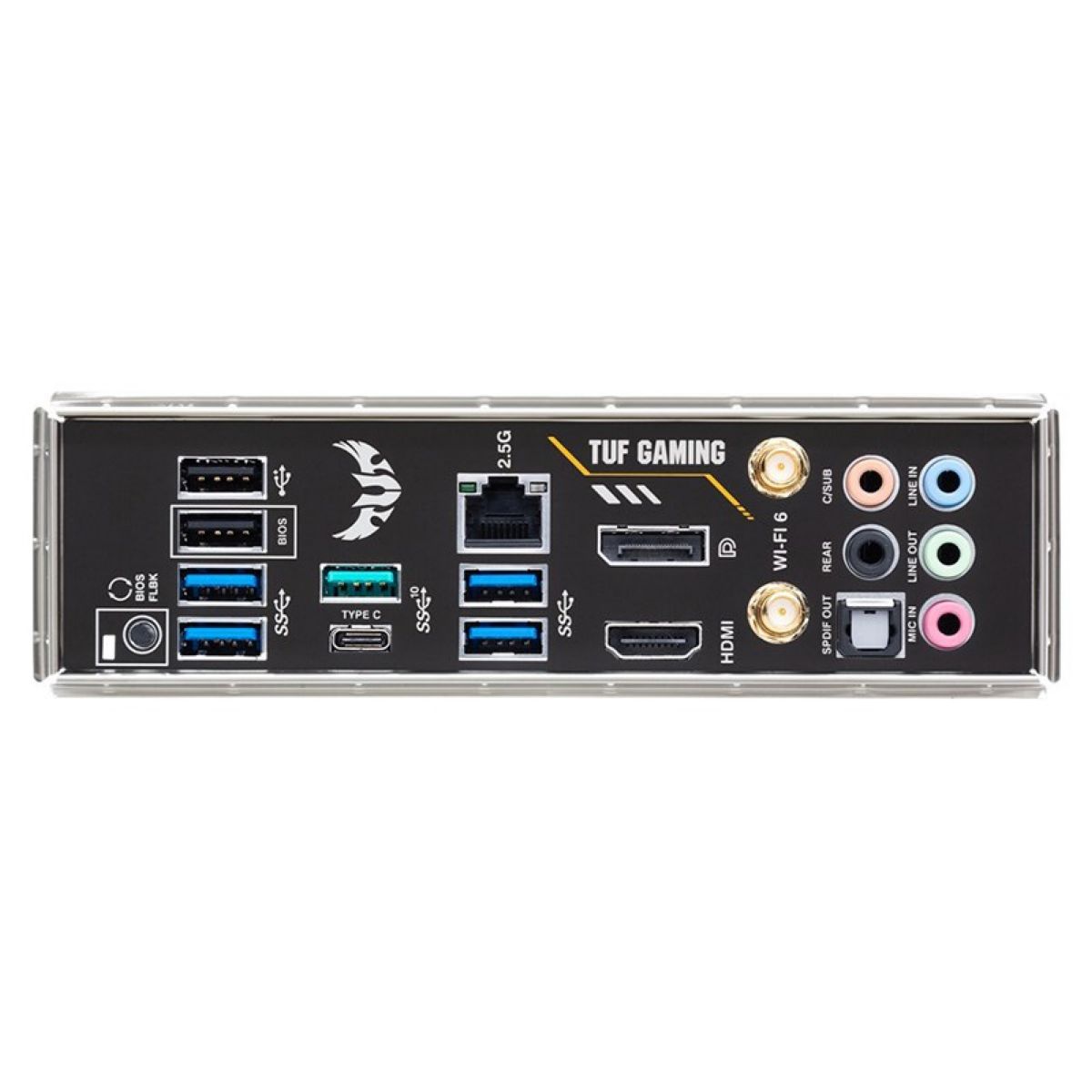

Panel trasero E/S: 1 x DisplayPort
1 x HDMI
1 x LAN (2.5G) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)
Caract. Especiales: ASUS TUF PROTECTION
- ASUS DIGI+ VRM (Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU
red
, DRAM
yellow
, VGA
white
, Boot Device
yellow green
)
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Procool
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header
Accesorios: User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)
Formato: ATX Form Factor
Socket: AMD AM4 Socket
Almacenamiento: Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
RAID: Support Raid 0, 1, 10
USB: Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
4 x USB 3.2 Gen 1 port(s)( x Type-A)
2 x USB 2.0 port(s)( x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
Otros: Supports AMD 2-Way CrossFireX Technology
Imágenes meramente ilustrativas.
Motherboard Asus B550 Plus Tuf Gaming Am4
