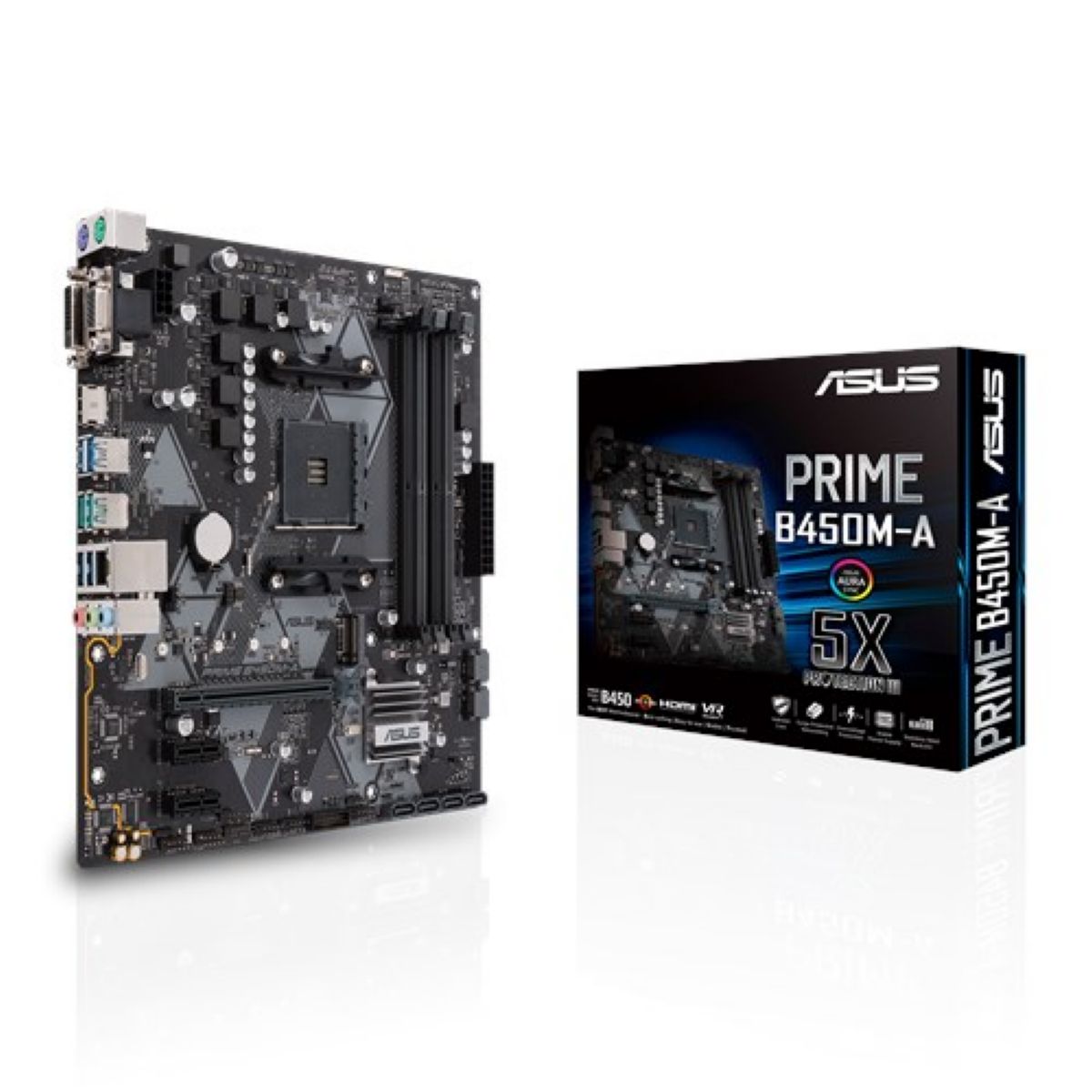

Motherboard Asus B450m-a | Componentes | Motherboards | Para amd | Integratec Online Store
Motherboard Asus B450m-a
Continuar Comprando
Compartir

  • Facebook

  • Google

Motherboard Asus B450m-a MAB450MA

139,00 USD

-

Sin stock |60 vendidos |Visto por 55 personas

Sin stock
60 vendidos
Visto por 55 personas

La serie de tarjetas madre ASUS Prime B450 te ofrece la base sólida que necesitas para tu primer equipo y la flexibilidad necesaria para actualizar tu equipo en cualquier momento. Hemos combinado lo mejor de la 2ª generación de procesadores AMD Ryzen™ con ajustes automáticos del sistema exclusivas de ASUS, controles avanzados de refrigeración y sonido integrado inmersivo. Arma tu equipo de forma sencilla e inteligente con la serie ASUS Prime B450.
Marca: Asus
Part Number: 90MB0YR0-M0EAY0
Cpu: AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
Chipset: AMD B450
Memoria: 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Gráficos: Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DVI-D/D-Sub ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Lan: Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard
Ranuras De Expansión: AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode) *1
AMD B450 chipset
2 x PCIe 2.0 x1
Conectores: 1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connecto
Panel Trasero E/s: 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2
4 x USB 3.1 Gen 1 ,
3 x Audio jack(s)
