Gigabyte Motherboard X870 GAMING WF6 4 Dimm DDR5 AM | | Integratec Online Store

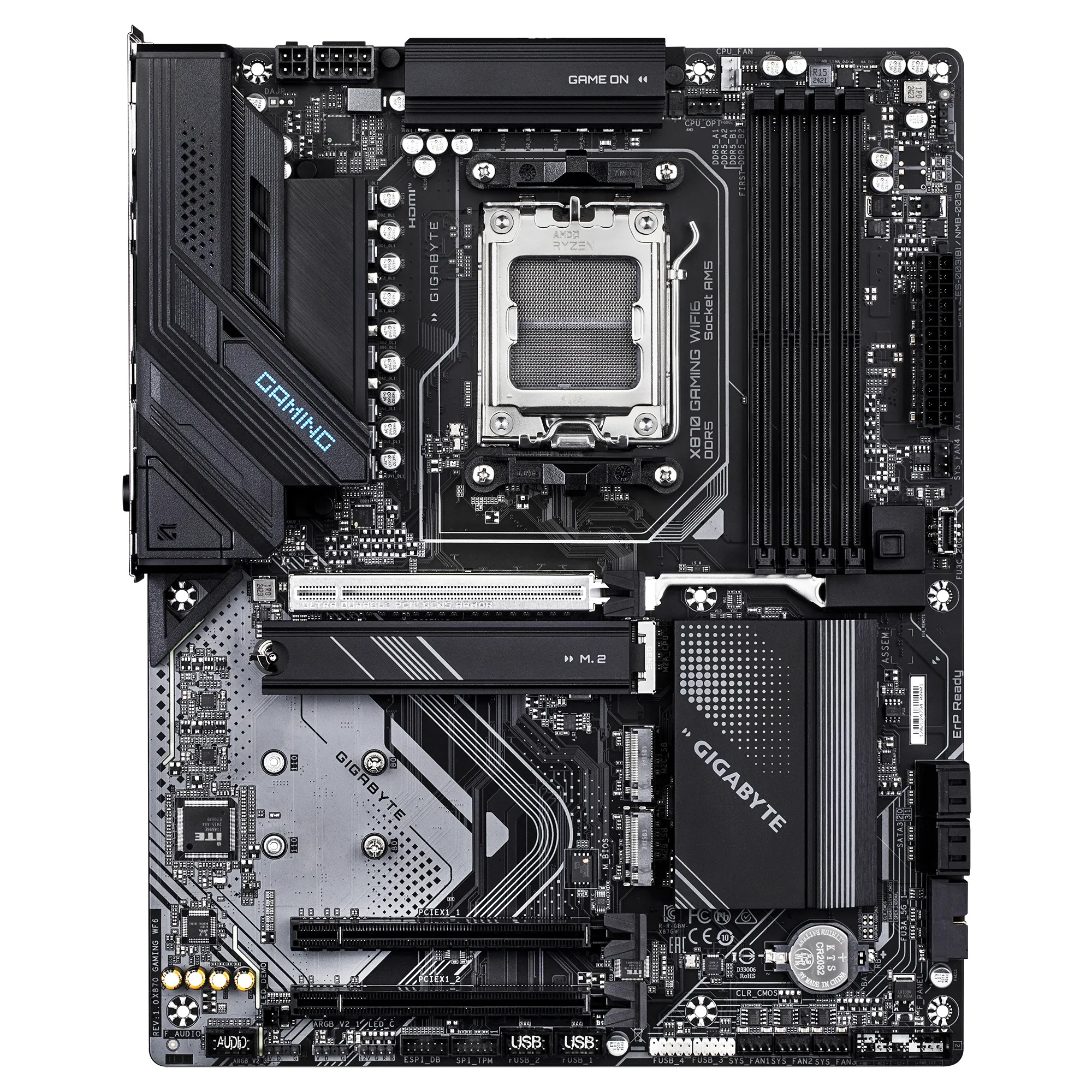

Gigabyte Motherboard X870 GAMING WF6 4 Dimm DDR5 AM
Continuar Comprando
Compartir

  • Facebook

  • Google

Gigabyte Motherboard X870 GAMING WF6 4 Dimm DDR5 AM
¡En Stock! imX870 GAMING WF6 G10

384,00 USD

-

LA COMPRA DE ESTE PRODUCTO GENERA 236 PUNTOS INTEGRA

Entrega inmediata* |35 vendidos |Visto por 20 personas

Entrega inmediata*
35 vendidos
Visto por 20 personas

Procesador

AMD Socket AM5, support for:

AMD Ryzen™ 9000 Series Processors

AMD Ryzen™ 8000 Series Processors

AMD Ryzen™ 7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)


Chipset

AMD X870


Memoria

Support for DDR5 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)


Gráficos Integrados

Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller

2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

Support for DisplayPort 1.4 version and HDR

Integrated Graphics Processor with AMD Radeon™ Graphics support

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Support for HDMI 2.1 version, HDCP 2.3, and HDR

Support native HDMI 2.1 TMDS compatible ports

(Graphics specifications may vary depending on CPU support.)


Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

You can change the functionality of an audio jack using the audio software

To configure 7.1-channel audio, access the audio software for audio settings


LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)


Wireless Communication module

Realtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0)

WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 80MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)


Puertos de Expansión

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

The PCIEX16 slot can only support a graphics card or an NVMe SSD

If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot

Chipset

2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)


Interfaz de Almacenamiento

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs

The M2B_SB connector shares bandwidth with the M2C_SB connector

The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 5 is only available on AMD Ryzen™ 9000 Series Processors

RAID 0, RAID 1, and RAID 10 support for SATA storage devices


USB

CPU + ASMedia USB4® controller

2 x USB4® USB Type-C® ports on the back panel

CPU

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

1 x USB 3.2 Gen 1 port on the back panel

Chipset + 2 USB 2.0 Hubs

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Chipset

1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports available through the internal USB headers


Conectores Internos de E/S

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

4 x SATA 6Gb/s connectors

3 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

4 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x reset jumper

1 x Clear CMOS jumper


Conectores del Panel Trasero

1 x Q-Flash Plus button

2 x SMA antenna connectors (2T2R)

1 x HDMI port (Note)

2 x USB4® USB Type-C® ports (DisplayPort (Note))

1 x USB 3.2 Gen 2 Type-A port (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

(Note) Actual support may vary by CPU


Controlador de E/S

iTE® I/O Controller Chip


Monitorización H/W

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install


BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Características Únicas

Support for GIGABYTE Control Center (GCC)

Available applications in GCC may vary by motherboard model

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup


Software Incluido

Norton® Internet Security (OEM version)

LAN bandwidth management software


Sistema Operativo

Support for Windows 11 64-bit

Support for Windows 10 64-bit


Diseño

ATX Form Factor; 30.5 cm x 24.4 cm

Gigabyte Motherboard X870 GAMING WF6 4 Dimm DDR5 AM
