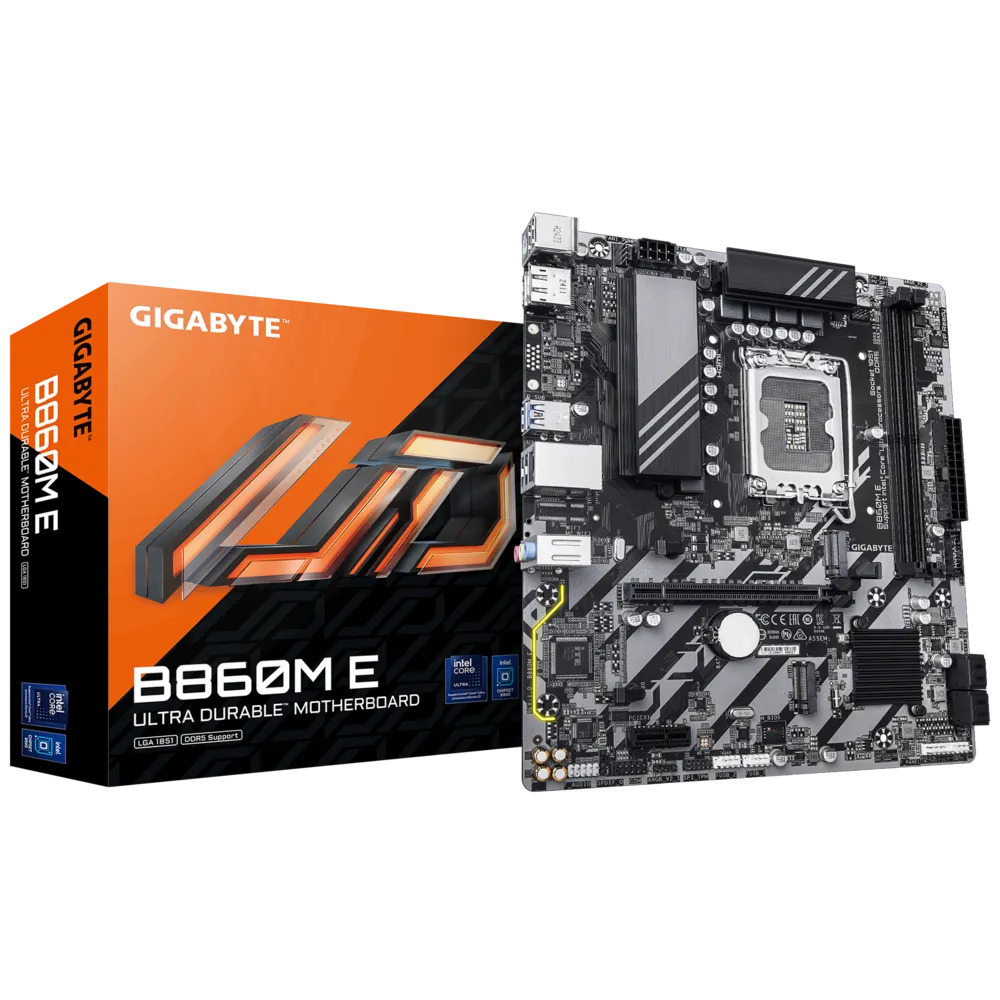

Gigabyte Motherboard B860M E 2Dimm DDR5 LGA 1851 m | | Integratec Online Store
Gigabyte Motherboard B860M E 2Dimm DDR5 LGA 1851 m
Continuar Comprando
Compartir

  • Facebook

  • Google

Gigabyte Motherboard B860M E 2Dimm DDR5 LGA 1851 m
¡En Stock! imB860M E G10

178,00 USD

-

LA COMPRA DE ESTE PRODUCTO GENERA 109 PUNTOS INTEGRA

Entrega inmediata* |19 vendidos |Visto por 23 personas

Entrega inmediata*
19 vendidos
Visto por 23 personas

Procesador

LGA1851 socket: Support for Intel® Core™ Ultra Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU


Chipset

Intel® B860 Express Chipset


Memoria

Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, datarate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)


Gráficos Integrados

Integrated Graphics Processor – Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Support for HDMI 2.1 version and HDCP 2.3

1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

Support for DisplayPort 2.1 version

(Graphics specifications may vary depending on CPU support.)


Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

You can change the functionality of an audio jack using the audio software

To configure 7.1-channel audio, access the audio software for audio settings

Support for S/PDIF Out


LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)


Puertos de Expansión

CPU

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

The PCIEX16 slot can only support a graphics card or an NVMe SSD

Chipset

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)


Interfaz de Almacenamiento

Chipset

2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices


USB

Chipset

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

2 x USB 2.0/1.1 ports on the back panel

Chipset + USB 2.0 Hub

4 x USB 2.0/1.1 ports available through the internal USB headers


Conectores Internos de E/S

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

1 x system fan/water cooling pump header

2 x addressable RGB Gen2 LED strip headers

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x Clear CMOS jumper


Conectores del Panel Trasero

1 x PS/2 keyboard/mouse port

1 x HDMI port

1 x DisplayPort

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Actual support may vary by CPU


Controlador de E/S

iTE® I/O Controller Chip


Monitorización H/W

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Fan (pump) speed control depends on installed hardware


BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Características Únicas

Support for GIGABYTE Control Center (GCC)

Available applications may vary by motherboard model

Support for Q-Flash

Support for Smart Backup


Software Incluido

Norton® Internet Security (OEM version)

LAN bandwidth management software


Sistema Operativo

Support for Windows 11 64-bit

Support for Windows 10 64-bit

The Intel® NPU driver is only supported on Windows 11


Diseño

Micro ATX Form Factor; 24.4 cm x 21.5 cm

Gigabyte Motherboard B860M E 2Dimm DDR5 LGA 1851 m
