Gigabyte Motherboard B650M D3HP AX 4 Dimm DDR5 AM5 | | Integratec Online Store

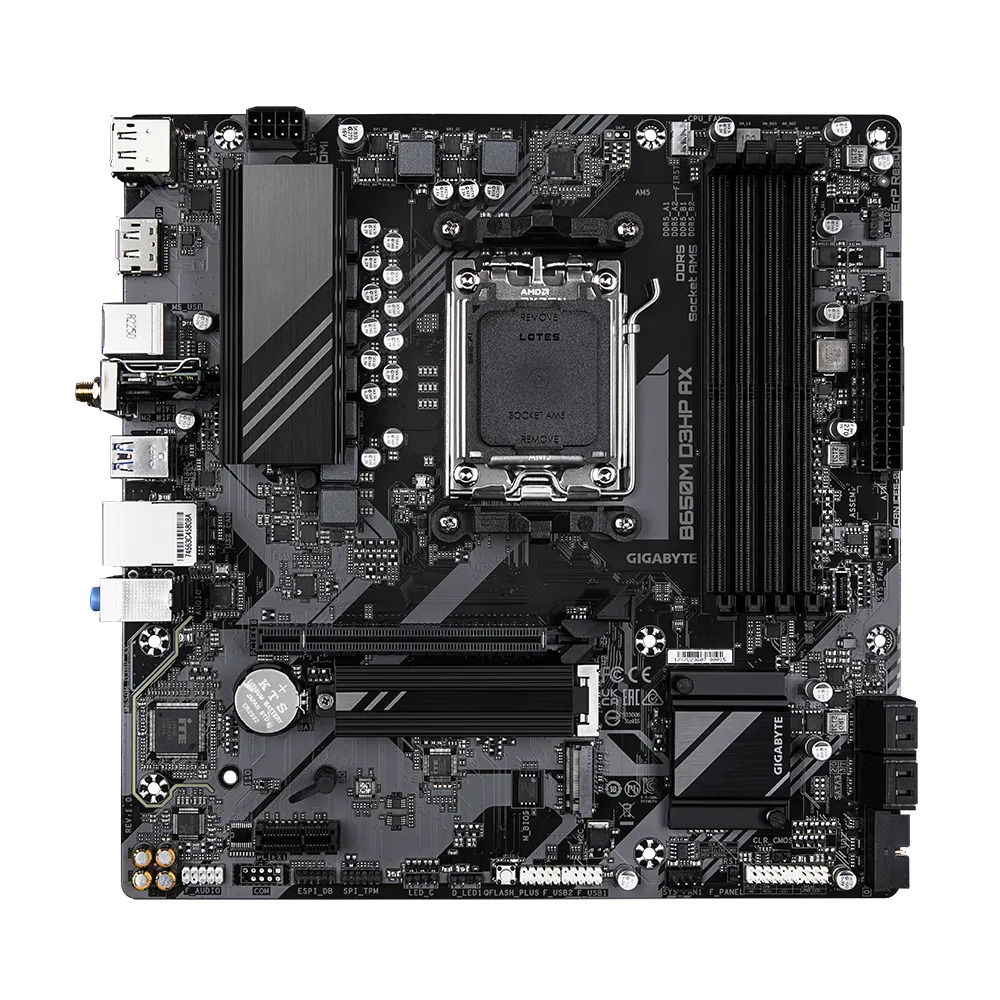

Gigabyte Motherboard B650M D3HP AX 4 Dimm DDR5 AM5
Continuar Comprando
Compartir

  • Facebook

  • Google

Gigabyte Motherboard B650M D3HP AX 4 Dimm DDR5 AM5
¡En Stock! imB650M D3HP AX G12

230,00 USD

-

LA COMPRA DE ESTE PRODUCTO GENERA 141 PUNTOS INTEGRA

Entrega inmediata* |20 vendidos |Visto por 23 personas

Entrega inmediata*
20 vendidos
Visto por 23 personas

Procesador

AMD Socket AM5, support for:

AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)


Chipset

AMD B650


Memoria

Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)


Gráficos Integrados

Integrated Graphics Processor with AMD Radeon™ Graphics support

2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

Support for DisplayPort 1.4 version

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Support for HDMI 2.1 version and HDCP 2.3

Support for native HDMI 2.1 TMDS compatible ports

Support for up to triple-display at the same time

(Graphics specifications may vary depending on CPU support.)


Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

You can change the functionality of an audio jack using the audio software

To configure 7.1-channel audio, access the audio software for audio settings


LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)


Wireless Communication module

Realtek® Wi-Fi 6E RTL8852CE

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless

(Actual data rate may vary depending on environment and equipment.)


Puertos de Expansión

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU

AMD Ryzen™ 7000 Series Processors / Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

The PCIEX16 slot can only support a graphics card or an NVMe SSD

If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot

Chipset

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)


Interfaz de Almacenamiento

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs

AMD Ryzen™ 7000 Series Processors / Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices


USB

CPU

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 port on the back panel

1 x USB 2.0/1.1 port on the back panel

Chipset

2 x USB 3.2 Gen 1 ports on the back panel

1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

2 x USB 3.2 Gen 1 ports available through the internal USB header

5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)


Conectores Internos de E/S

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper


Conectores del Panel Trasero

1 x PS/2 keyboard/mouse port

1 x USB Type-C® port, with USB 3.2 Gen 1 support

3 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x HDMI port

2 x DisplayPorts

1 x RJ-45 port

3 x audio jacks


Controlador de E/S

iTE® I/O Controller Chip


Monitorización H/W

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

Whether the fan speed control function is supported will depend on the fan you install


BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Características Únicas

Support for GIGABYTE Control Center (GCC)

Available applications in GCC may vary by motherboard model

Support for Q-Flash

Support for Q-Flash Plus


Software Incluido

Norton® Internet Security (OEM version)

LAN bandwidth management software


Sistema Operativo

Support for Windows 11 64-bit

Support for Windows 10 64-bit


Diseño

Micro ATX Form Factor; 24.4 cm x 24.4 cm

Gigabyte Motherboard B650M D3HP AX 4 Dimm DDR5 AM5
